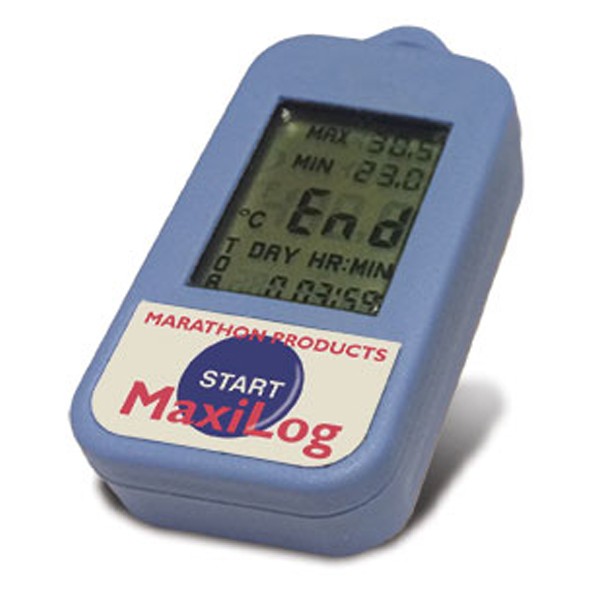

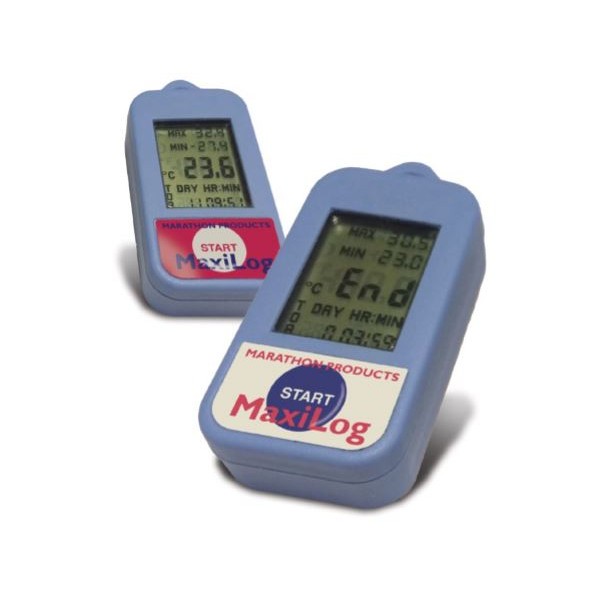

MaxiLog

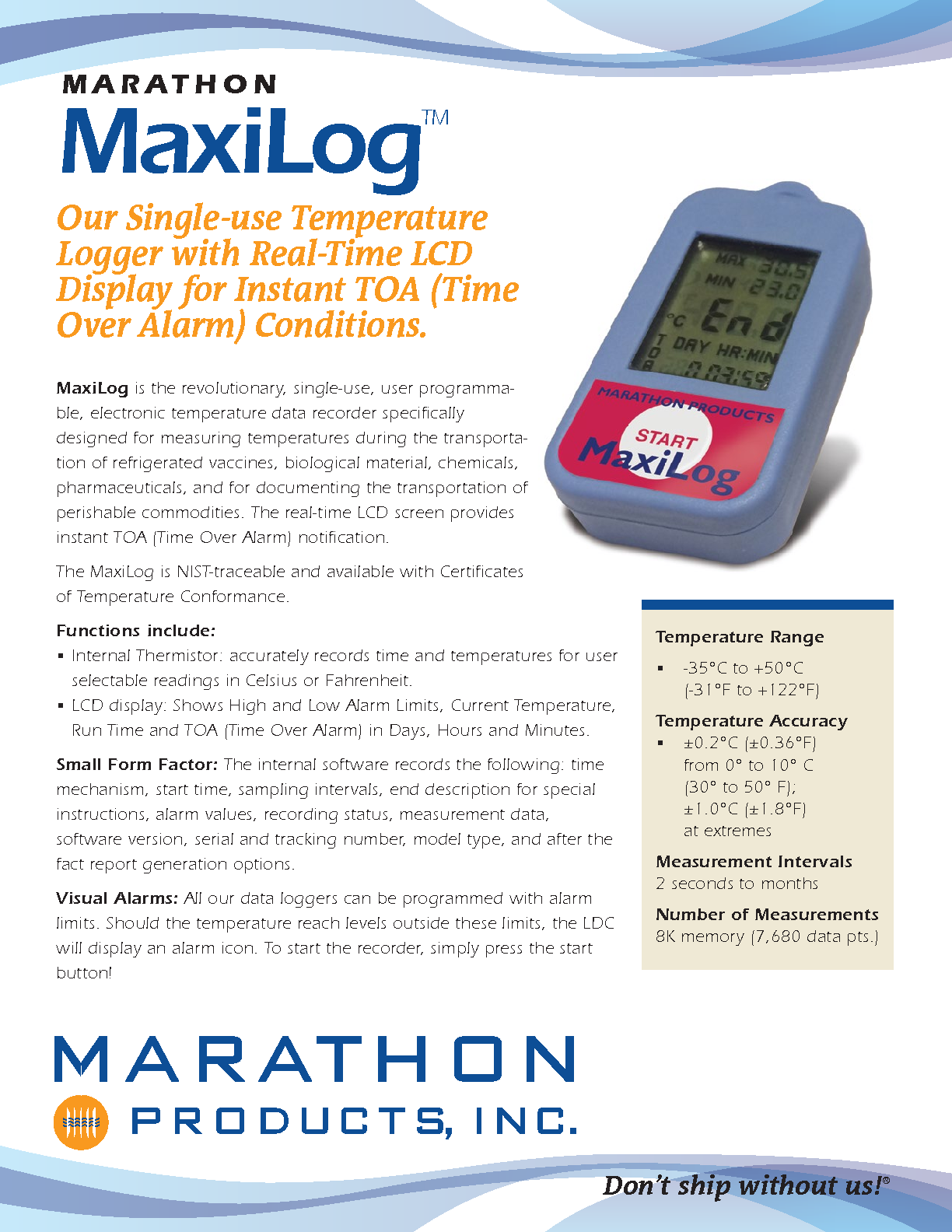

Data Sheet

Call for Pricing

Required Accessories:
MaxiThermal software
USB Cradle
NIST Traceable Certificate = Included
Optional:
NIST Certificate + 1, 2 or 3 Point Calibration Available

Temperature Range

-35°C to 50°C / -31°F to 122°F

Temperature Accuracy

±0.2°C at 0° to 10°C / ±1.0°C at extremes
±0.36°F at 32° to 50°F / ±1.8°F at extremes

Memory

EEPROM, 8K storage

Measurement Interval
(user-programmable)

Programmable from 2 seconds to months. For example:
4 days = 0 min. 45 sec.
7 days = 1 min. 18 sec.
16 days = 2 min. 58 sec.
30 days = 5 min. 33 sec.
60 days = 11 min. 6 sec.
90 days = 16 min. 39 sec.
365 days = 1 hr. 7 min. 30 sec.

Computer Interface

USB Cradle required.

Indicators

LCD Display Screen. Start/Stop and Alarm.

High and Low Alarm Limits

LCD ALARM set by temperature and time

Internal Software Features

Times, start time, interval, user description, alarm values, recording status, measurement data, software version, serial number, model type.

Power Source

Lithium battery (2 year operating life, 3 year shelf life)

Size

5.5 cm(L) x 2.7 cm(W) x 1.4 cm(H) / 2.2 in. (L) x 1.0 in. (W) x 0.55 in. (H)

Weight

19 grams / 2.0 ounces

CE Certified

Yes

Waterproof

Yes

Maxi-Thermal Software
features include:

Report Summary & Statistics
Mean Kinetic Temperature Calculation
File Manager
Note attachment
Zoom
Ability to look at recorded temperature points and date / time stamp
Elapsed time view or date / time recorded view
Celsius or Fahrenheit display
3D view option
Can open up to 16 files at one time
Export data to CSV or TXT file
Export graph as a bitmap or metafile
