Logger Category, Description

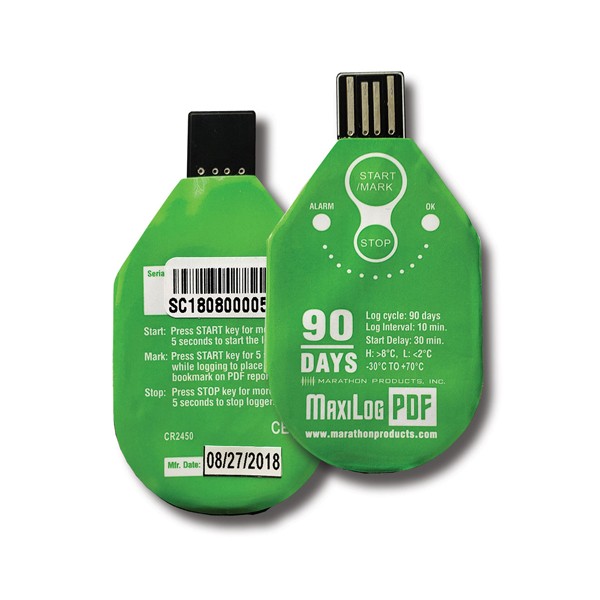

Category 1, Single-Use. Low-cost compact data logger with Mini-USB connection to PC.

Memory/Storage

12.900 measurements

Internal Sensor

Nist-traceable Precision SMT Thermistor
Range: -30°C to +70°C / -22°F to +158°F
Accuracy: ±0.5°C at -20° to +40°C, ±1.0°C at extremes / ±0.9°F at 4° to 104°F, ±1.8°F at extremes

External Sensor/Probe count and connector type

None

Alarm Programming

Pre-programmed to 90 days.

Alarm Modes

None

Alarm Reset Options

None

Alarm Notifications

Red LED flashes when button is pushed.

Audible Alarm

None

Display

None

Indicators

LED indicators: on/recording (green), alarm (red)

Size and Weight

4.73 cm(w) x 8.4 cm(l) x 6.9 mm (h) / 1.87 in.(w) x 3.27 in (l) x .236 in.(h)
10.4 grams / .367 oz.

CE Certified

Yes

Water-resistant

Yes, IP67 rated

Internal Firmware, Internal Clock Accuracy

Internal Clock, Start/Stop time, Interval, Alarm values, Recording status, Firmware version, Serial number, Model.
Clock Accuracy is better than 2 minutes per month on average at normal temperatures (-29°C to +72°C).
For loggers directly exposed to temperatures at or below -80°C, the expected accuracy is ±15 minutes per month

Measurement Intervals

Pre-programmed: 10 minutes intervals

Computer Interface (physical)

USB2.0

Data Retrieval Method

Download to PC using a USB connection. Windows XP, 7, 8, 10. Adobe Reader software required.

Programming (Initialization) Method

Comes pre-programmed. 30 minute start delay.

Wireless Connection and Range

None

Remote Monitoring and Network Connection type

None

Required Accessories:

None

Optional Accessories:

None

Included paperwork

Quality Control sheet, NIST certificate, Packing List included with all purchases. See the Calibration page for more information.

Optional Paperwork

Calibration Report including data included with purchase of Optional Calibration. See the Calibration page for more information.

Power Source, Battery Life and Replacement

One CR2032 Lithium Battery. See Battery Performance page for more information.

Warranty

1 Year Limited Warranty
