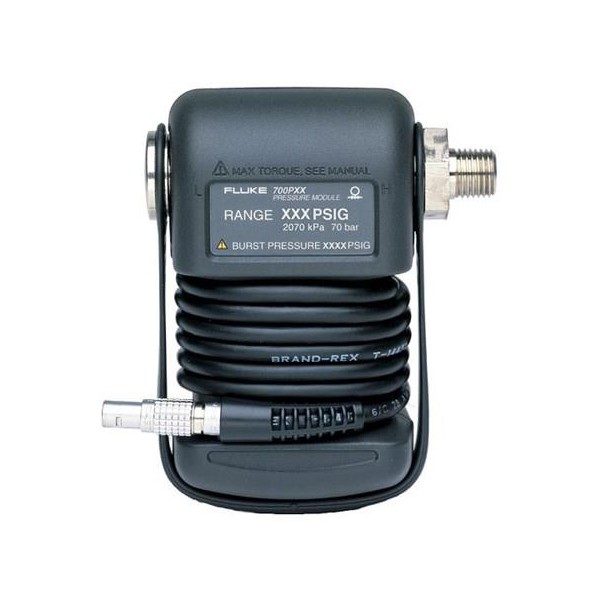

Fluke 700P05 Offers

The Fluke 700P05 Differential Pressure Module displays pressure readings in any of 10 different pressure units you specify in the calibrator setup. The pressure module allows you to measure pressure with the Fluke 700 Series Process Calibrators. This differential pressure module has two pressure fittings and measures the difference between the applied pressure on the high fitting versus the low fitting. It functions like a gage module when the low fitting is open. The pressure module measures pressure using an internal microprocessor.

Features:

• Features internal temperature compensation from 0 to 50°C for full-accuracy performance
• Includes NIST-traceable calibration certificate
• Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source
• Certified by CSA: I.S. Class I, Div 1, Groups A-D T4, Ta = 0 to 50°C
• ATEX II 1G EEx ia IIC T4 Compliant.

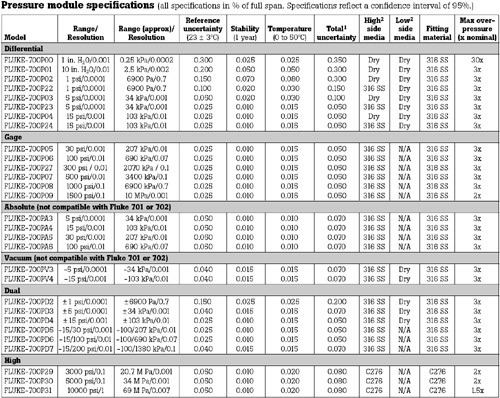

Specifications:

• Range: 0 to 30.000psi; 0 to 200.00kPa; 0 to 2.0000 bar
• Resolution: 0.0001 / 0.7
• Total Uncertainty 1 year: 0.050
• High Side Media: Dry
• Low Side Media: Dry
