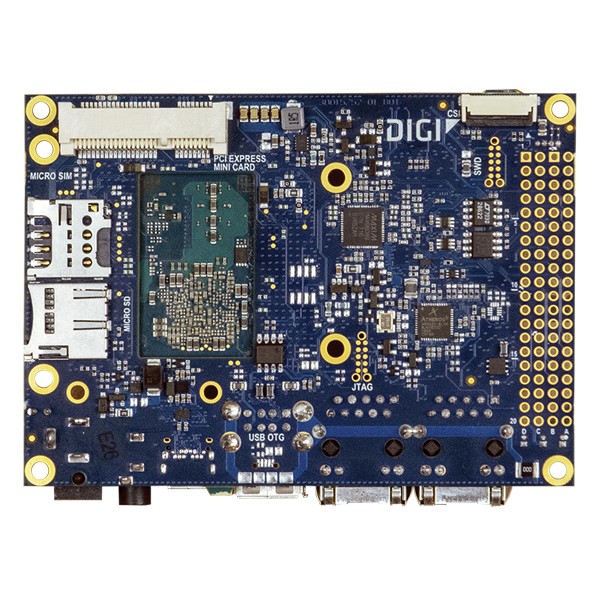

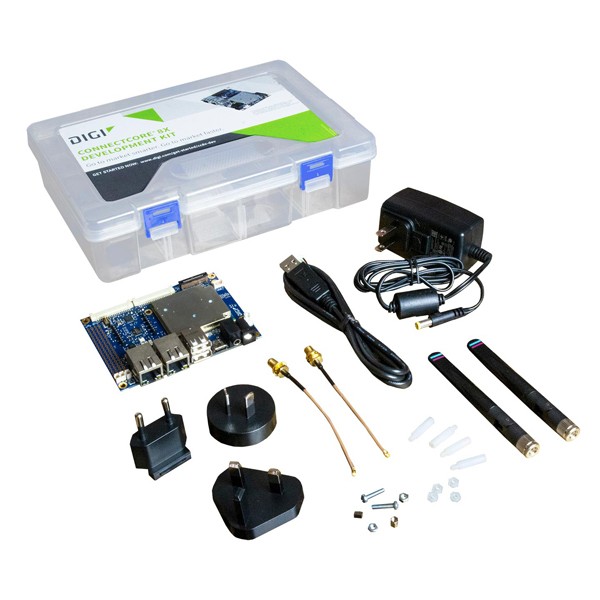

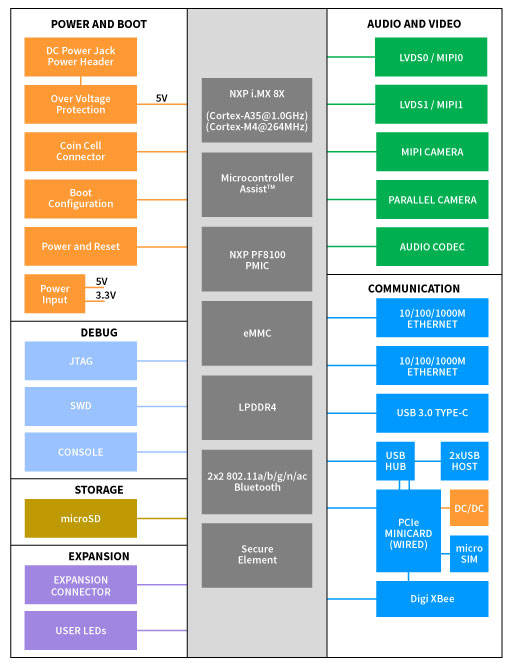

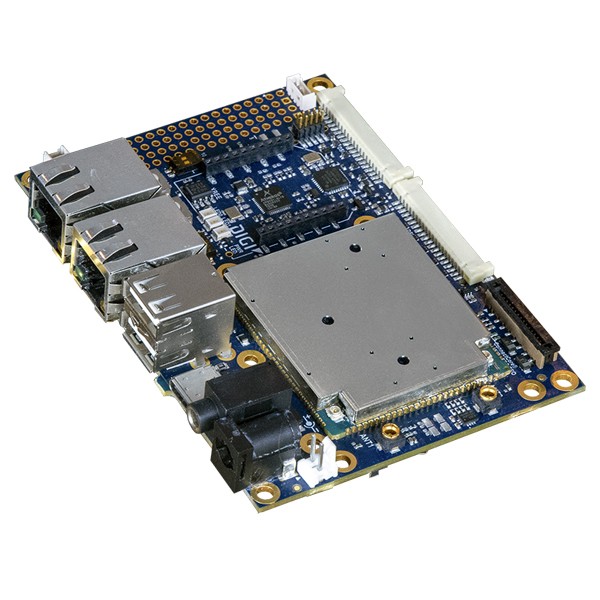

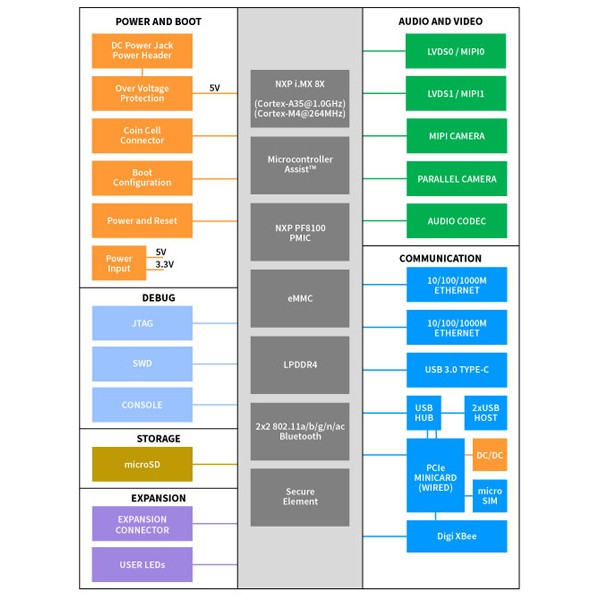

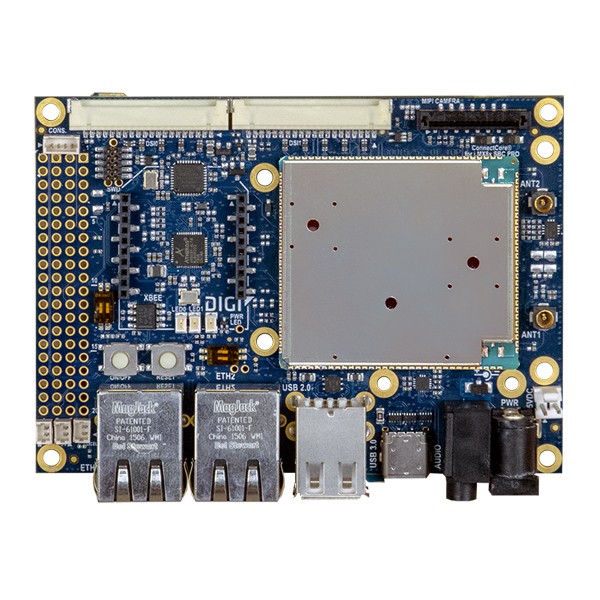

APPLICATION PROCESSOR

NXP i.MX8QuadXPlus

• 4x Cortex-A35 cores @ 1.0 GHz
• 1x Cortex-M4F @266 MHz core for real-time processing
• 1x Tensiilica® Hi-Fi 4 DSP

MEMORY

Up to 16 GB eMMC, up to 2GB LPDDR4 (32-bit)

GRAPHICS

Multi-stream-capable HD video engine with H.265 (4Kp30), H.264 (1080p60), VP6/VP8 (1080p60), MPEG-2 (1080p60), MPEG4 (1080p),
RealVideo (1080p) decode and H.264 (1080p30) encode; 3D video playback in HD in high-performance families; superior 3D graphics performance with up to 4 shaders

DISPLAYS

2x LVDS/MIPI with backlight control and I2C touch interface

CAMERA

1x 8-bit Parallel Camera Interface, 1x MIPI Camera 2x lanes

AUDIO

2x Line-In, 1 x Line-Out, 1x Mic-In, 1x Headset on 3.5mm audio jack

UART/CONSOLE

4-pin header (console), 2x UARTs on expansion connector

SECURITY

Digi TrustFence®, TRNG, TrustZone, Ciphers, Security Control, Secure RTC, Secure JTAG, eFuses (OTP)

ETHERNET

2x Gigabit Ethernet 10/100/1000M with AVB on RJ-45, with 2 LEDs for link/speed/activity

WI-FI

2x2 MIMO 802.11a/b/g/n/ac: 2.412 - 2.484 GHz, 4.900 - 5.850 GHz
Security: WEP, WPA-PSK/WPA2-Personal, WPA/WPA2 Enterprise, 802.11i, Soft Access Point Mode (up to 10 clients)

BLUETOOTH

Bluetooth 5

ANTENNA CONNECTORS

2 x U.FL on module

DIGI XBEE RF

Standard Digi XBee® socket

USB

2x USB 2.0 Host, 1x USB 3.0 on Type-C connector

PCI EXPRESS MINI CARD

Full-size card support, with on-board Micro SIM slot support – dedicated 3A power supply

OTHER CONNECTIVITY

2x CAN, 1x SPI, 1x I2C, 1x expansion connector

EXTERNAL STORAGE

MicroSD

BOOT CONFIGURATION

On module eMMC, on SBC microSD, serial downloader and boot from fuses

DEBUG

1x JTAG for i.MX 8X (Tag-Connect), 1x SWD for Kinetis MCA (Tag-Connect and header)

BUTTONS

1x power button (power on, power off, sleep, wake-up), 1x reset button

LEDS

2x user LEDs (1x yellow, 1x green), 1x power LED (3.3V)

POWER INPUTS

5 VDC @ 500 mA (typical, depending on use-case), 1x coin cell 2-pin header

POWER SUPPLY CONNECTOR

Main power supply via 2mm locking barrel connector, or dedicated power connector (2-pin header)

POWER OUTPUTS

3.3 V Out (2-pin header), 5 V Out (2-pin header)

OPERATING TEMPERATURE

-40° C to 85° C (-40° F to 185° F)

STORAGE TEMPERATURE

-50° C to 125° C (-58° F to 257° F)

RELATIVE HUMIDITY

Relative humidity 5% to 90% (non-condensing)

RADIO APPROVALS (PENDING)

US, Canada, EU, Japan, Australia/New Zealand

EMISSIONS/ IMMUNITY/ SAFETY (PENDING)

FCC Part 15 Class B, EN 55024, EN 55032 Class B, ICES-003 Class B, VCCI Class II,
FCC Part 15 Subpart C Section 15.247 and 15.407, IC (Industry Canada), EN 300 328, EN 301 893, EN 300 440, EN 301 489-1/-17, EN 55024, EN 301 489-3

DESIGN VERIFICATION (PENDING)

Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78;
Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT

MECHANICAL DIMENSIONS

100 mm x 72 mm (3.9 in x 2.8 in)
