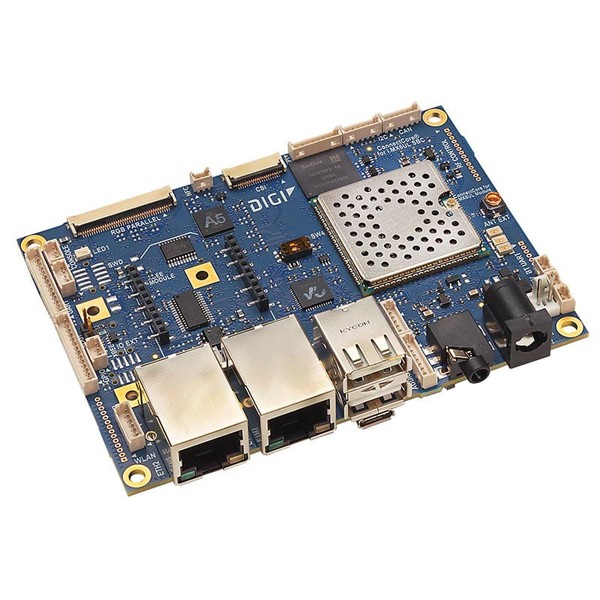

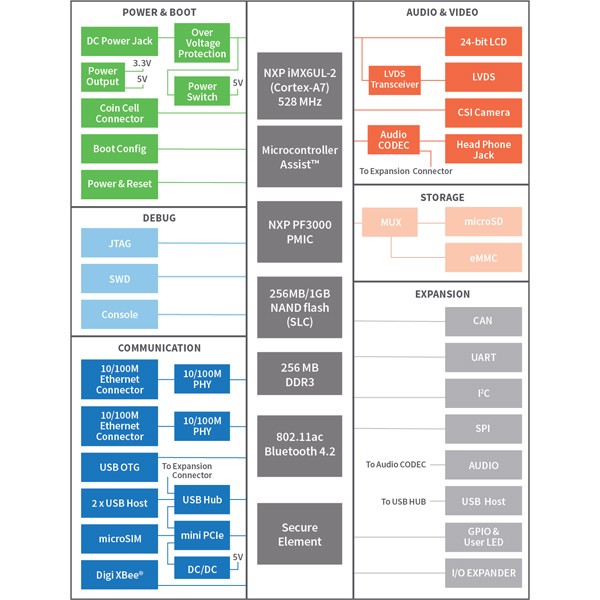

PERFORMANCE*

APPLICATION PROCESSOR

NXP i.MX6UL-2, ARM® Cortex®-A7 @ 528 MHz, 128 KB L2 cache, with NEON™ MPE (Media Processor Engine) co-processor

MEMORY

256 K / 1 GB NAND flash, 256 K / 1 GB DDR3

WIRED NETWORK CONNECTIVITY

ETHERNET

2 x 10/100 Mbit Ethernet

WIRELESS NETWORK CONNECTIVITY

WI-FI

Dual-band 802.11a/b/g/n/ac 1x1 (MCS 0-9)

BLUETOOTH

Bluetooth 5, with Bluetooth Low Energy support

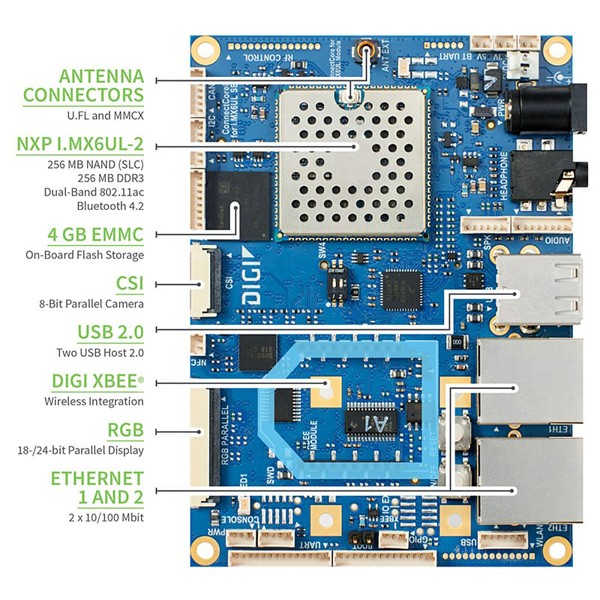

ANTENNAS

On-module U.FL or on-board MMCX antenna connector for Wi-Fi and Bluetooth, external NFC antenna option

NFC

Energy-harvesting NXP NTAG, field detection trigger, ISO 14443A and NFC Forum Type 2 Tag compliant

DIGI XBEE® RF

Standard Digi XBee socket

PERIHPERALS/INTERFACES

ETHERNET

2 x RJ-45 (10/100 Mbit)

USB

2 x USB Host (dual Type-A), 1 x USB Host (6-pin header ), 1 x USB OTG (micro-USB)

DISPLAY

24-bit Parallel RGB (40-pin header), and 18-bit LVDS (20-pin header)

CAMERA

8-bit Parallel CSI (20-pin header)

GPIO

14-pin header (8 x GPIO, 1 x touch)

UART / CONSOLE

14-pin header (1 x two-wire, 2 x four-wire, one shared with XBee socket), 3-pin header (console)

OTHER CONNECTIVITY

1 x I2C (6-pin header), 1 x SPI (8-pin header), 2 x CAN (6-pin header)

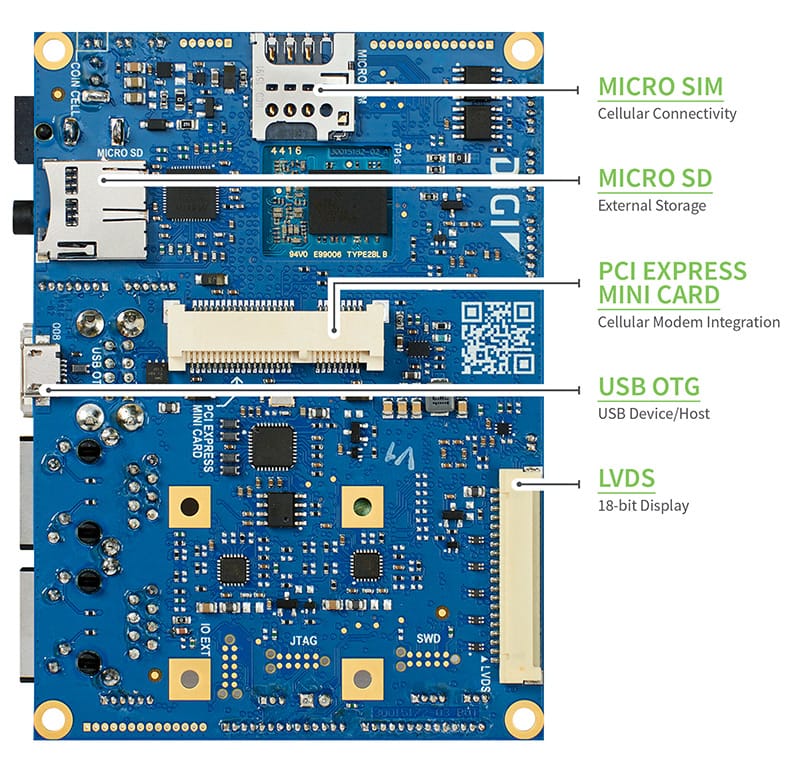

PCI EXPRESS MINI CARD

Half-size and full-size card support, with on-board Micro SIM slot support

RF CONTROL

14-pin header (Wi-Fi Enable/Disable, Bluetooth Enable/Disable, Wakeup, PCM, LTE Control, GPS Co-Existence)

EXTERNAL STORAGE

microSD , on-board 4 GB eMMC flash for data storage

AUDIO

3.5 mm headphone jack, 6-pin header (speaker), 8-pin header (line-in, microphone, line-out)

BUTTONS / SWITCHES

Power, Reset, User, Boot Select (NAND/microSD), RF (Wi-Fi Enable, Bluetooth Enable), Antenna Select (U.FL on-module/MMCX on-board)

DEBUG

Tag-Connect for JTAG and SWD

POWER

3.3 V out (2-pin header), 5V out (2-pin header), battery (2-pin header)

LEDS

Power, 3 x User

CERTIFICATIONS**

RADIO APPROVALS

US, Canada, EU, Japan, Australia, New Zealand

EMISSIONS / IMMUNITY / SAFETY

FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489-17, EN 55024, EN 301 489-3, Safety (UL/UL equivalent)

POWER REQUIREMENTS

SUPPLY VOLTAGE

5 VDC @ 300 mA (typical); See ConnectCore 6UL module product brief for module-only power consumption guidance.

POWER CONNECTORS

Locking barrel connector (2 mm), or dedicated power connector (3-pin header)

ENVIRONMENTAL

OPERATING TEMPERATURE

-40° C to 85° C (-40° F to 185° F)

STORAGE TEMPERATURE

-50° C to +125° C (-58° C to 257° F)

RELATIVE HUMIDITY

Relative humidity 5% to 90% (non-condensing)

DESIGN VERIFICATION

Temperature: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78; Vibration/Shock: IEC 60068-2-6, IEC 60068-2-64, IEC 60068-2-27, HALT

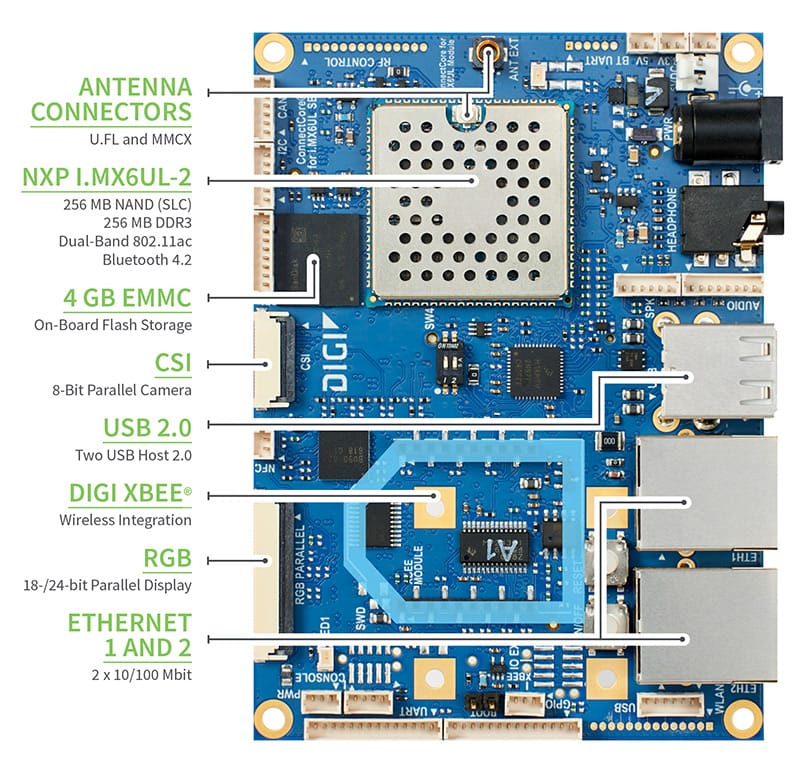

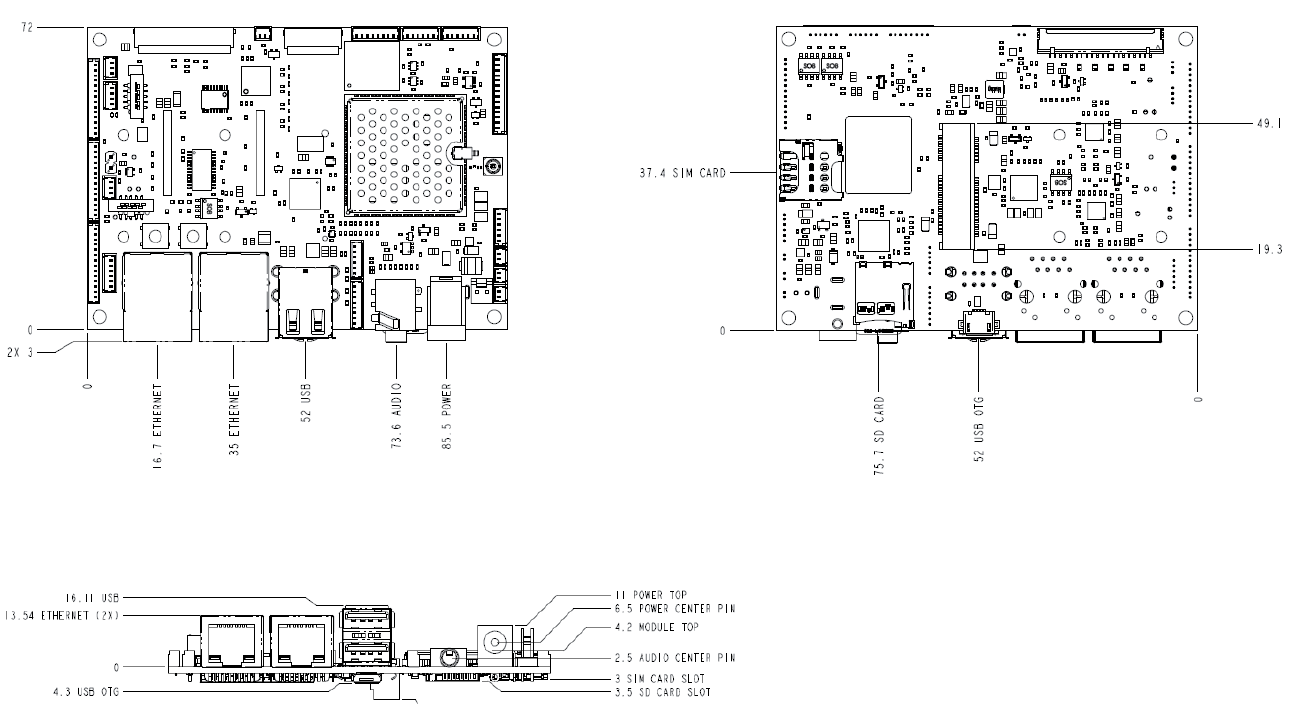

MECHANICAL

DIMENSIONS

100 mm x 72 mm (4.0 in x 2.83 in)

WARRANTY

PRODUCT WARRANTY

1 year
