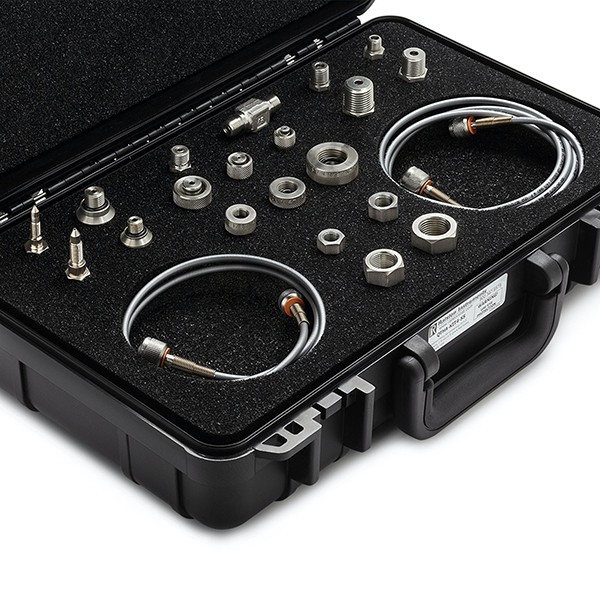

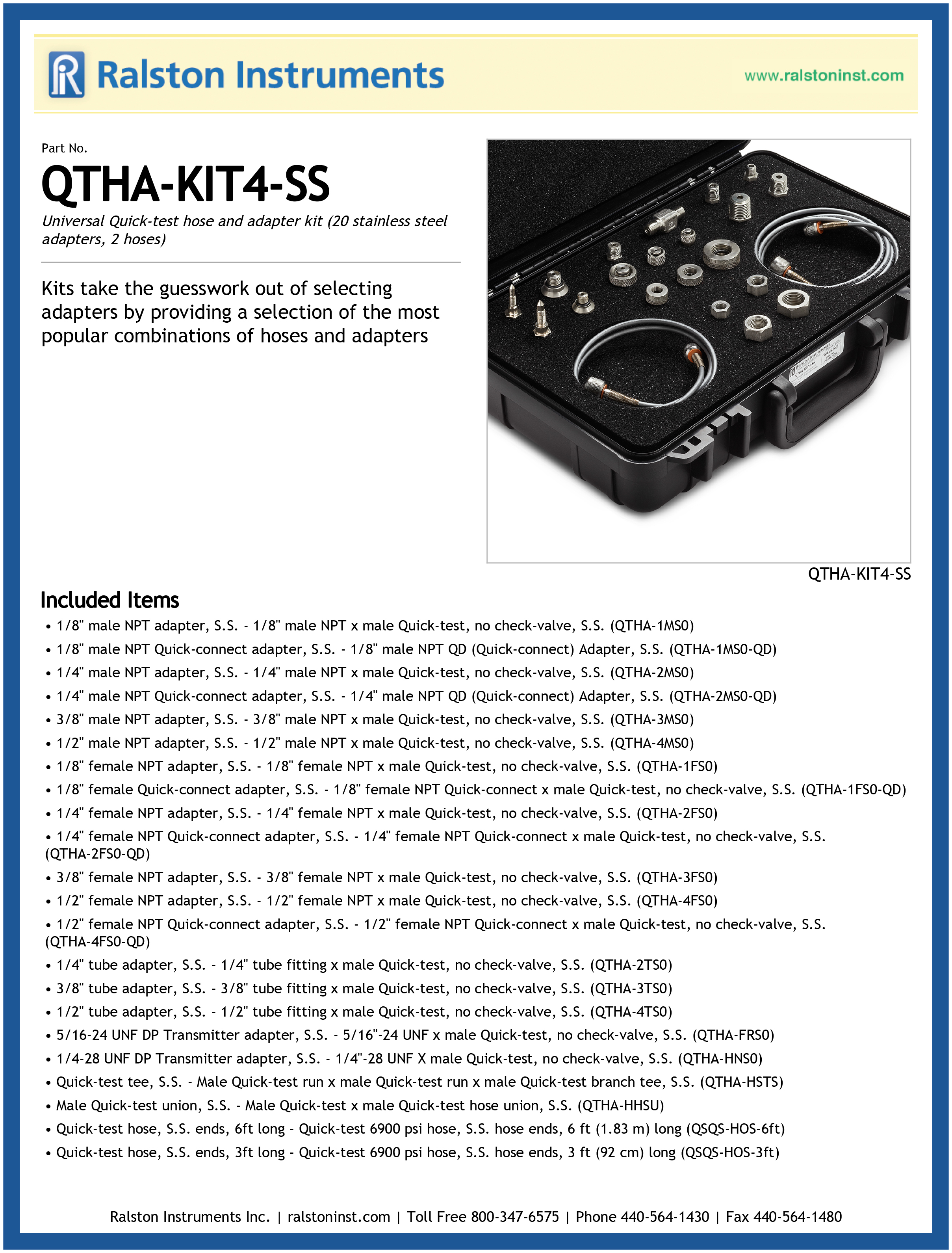

Kits take the guesswork out of selecting adapters by providing a selection of the most popular combinations of hoses and adapters

• 1/8" male NPT adapter, S.S.: 1/8" male NPT x male Quick-test, no check-valve, S.S.
• 1/8" male NPT Quick-connect adapter, S.S.: 1/8" male NPT QD (Quick-connect) Adapter, S.S.
• 1/4" male NPT adapter, S.S.: 1/4" male NPT x male Quick-test, no check-valve, S.S.
• 1/4" male NPT Quick-connect adapter, S.S.: 1/4" male NPT QD (Quick-connect) Adapter, S.S.
• 3/8" male NPT adapter, S.S.: 3/8" male NPT x male Quick-test, no check-valve, S.S.
• 1/2" male NPT adapter, S.S.: 1/2" male NPT x male Quick-test, no check-valve, S.S.
• 1/8" female NPT adapter, S.S.: 1/8" female NPT x male Quick-test, no check-valve, S.S.
• 1/8" female Quick-connect adapter, S.S.: 1/8" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 1/4" female NPT adapter, S.S.: 1/4" female NPT x male Quick-test, no check-valve, S.S.
• 1/4" female NPT Quick-connect adapter, S.S.: 1/4" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 3/8" female NPT adapter, S.S.: 3/8" female NPT x male Quick-test, no check-valve, S.S.
• 1/2" female NPT adapter, S.S.: 1/2" female NPT x male Quick-test, no check-valve, S.S.
• 1/2" female NPT Quick-connect adapter, S.S.: 1/2" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 1/4" tube adapter, S.S.: 1/4" tube fitting x male Quick-test, no check-valve, S.S.
• 3/8" tube adapter, S.S.: 3/8" tube fitting x male Quick-test, no check-valve, S.S.
• 1/2" tube adapter, S.S.: 1/2" tube fitting x male Quick-test, no check-valve, S.S.
• 5/16-24 UNF DP Transmitter adapter, S.S.: 5/16"-24 UNF x male Quick-test, no check-valve, S.S.
• 1/4-28 UNF DP Transmitter adapter, S.S.: 1/4"-28 UNF X male Quick-test, no check-valve, S.S.
• Quick-test tee, S.S.: Male Quick-test run x male Quick-test run x male Quick-test branch tee, S.S.
• Male Quick-test union, S.S.: Male Quick-test x male Quick-test hose union, S.S.
• Quick-test hose, S.S. ends, 6ft long: Quick-test 6900 psi hose, S.S. hose ends, 6 ft (1.83 m) long
• Quick-test hose, S.S. ends, 3ft long: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

1/8" male NPT adapter, S.S. QTHA-1MS0

Length	1.2 in / 31 mm
Width	0.56 in / 15 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/8" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/8" male NPT Quick-connect adapter, S.S. QTHA-1MS0-QD

Length	1.75 in / 45 mm
Width	0.87 in / 23 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/8" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/4" male NPT adapter, S.S. QTHA-2MS0

Length	1.29 in / 33 mm
Width	0.56 in / 15 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/4" male NPT Quick-connect adapter, S.S. QTHA-2MS0-QD

Length	1.88 in / 48 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

3/8" male NPT adapter, S.S. QTHA-3MS0

Length	1.4 in / 36 mm
Width	0.75 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	3/8" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/2" male NPT adapter, S.S. QTHA-4MS0

Length	1.57 in / 40 mm
Width	0.87 in / 23 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	7/8 In / 23 mm
Wrench Size	23 mm / 7/8 in
End 1 Connector	1/2" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/8" female NPT adapter, S.S. QTHA-1FS0

Length	1.38 in / 36 mm
Width	0.62 in / 16 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	1/8" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/8" female Quick-connect adapter, S.S. QTHA-1FS0-QD

Length	1.52 in / 39 mm
Width	0.78 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/8" Female NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/4" female NPT adapter, S.S. QTHA-2FS0

Length	1.57 in / 40 mm
Width	0.75 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	1/4" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/4" female NPT Quick-connect adapter, S.S. QTHA-2FS0-QD

Length	1.67 in / 43 mm
Width	0.94 in / 24 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

3/8" female NPT adapter, S.S. QTHA-3FS0

Length	1.32 in / 34 mm
Width	0.94 in / 24 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	15/16 In / 24 mm
Wrench Size	24 mm / 15/16 in
End 1 Connector	3/8" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/2" female NPT adapter, S.S. QTHA-4FS0

Length	1.66 in / 43 mm
Width	1.12 in / 29 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	1-1/8 In / 4.00 mm
Wrench Size	29 mm / 1 1/8 in
End 1 Connector	1/2" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/2" female NPT Quick-connect adapter, S.S. QTHA-4FS0-QD

Length	1.69 in / 43 mm
Width	1.39 in / 36 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/2" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/4" tube adapter, S.S. QTHA-2TS0

Length	1.47 in / 38 mm
Width	0.56 in / 15 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
End 1 Connector	1/4" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

3/8" tube adapter, S.S. QTHA-3TS0

Length	1.53 in / 39 mm
Width	0.72 in / 19 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	3/8" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/2" tube adapter, S.S. QTHA-4TS0

Length	1.7 in / 44 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	1/2" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

5/16-24 UNF DP Transmitter adapter, S.S. QTHA-FRS0

Length	2.16 in / 55 mm
Width	0.56 in / 15 mm
Compatible with	Rosemount 2051 Series DP Pressure Transmitters, Rosemount 3051 Series DP Pressure Transmitters, Yokogawa EJ series DP Pressure Transmitters, Anderson Greenwood M25 Block and Bleed Valves, Anderson Greenwood M251 Block and Bleed Valves, Foxboro (by Schneider Electric) IDP10, Foxboro (by Schneider Electric) IDP15, Foxboro (by Schneider Electric) IDP31, Foxboro (by Schneider Electric) IDP32, Foxboro (by Schneider Electric) IMV25
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	5/16-24 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

1/4-28 UNF DP Transmitter adapter, S.S. QTHA-HNS0

Length	2.02 in / 52 mm
Width	0.56 in / 15 mm
Compatible with	Honeywell Smartline ST700 Pressure Transmitter, Honeywell Smartline ST800 Pressure Transmitter
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4-28 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

Quick-test tee, S.S. QTHA-HSTS

Length	1.96 in / 50 mm
Width	1.25 in / 32 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	Male Quick-test
End 2 Connector	Male Quick-test
End 3 Connector	Male Quick-test

Male Quick-test union, S.S. QTHA-HHSU

Length	1.25 in / 32 mm
Width	0.56 in / 15 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	Male Quick-test
End 2 Connector	Male Quick-test

Quick-test hose, S.S. ends, 6ft long QSQS-HOS-6ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	6 ft / 1.83 m
Inner Diameter	0.08 In / 3.00 mm
Length	6 ft / 2.00 m
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

Quick-test hose, S.S. ends, 3ft long QSQS-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel
