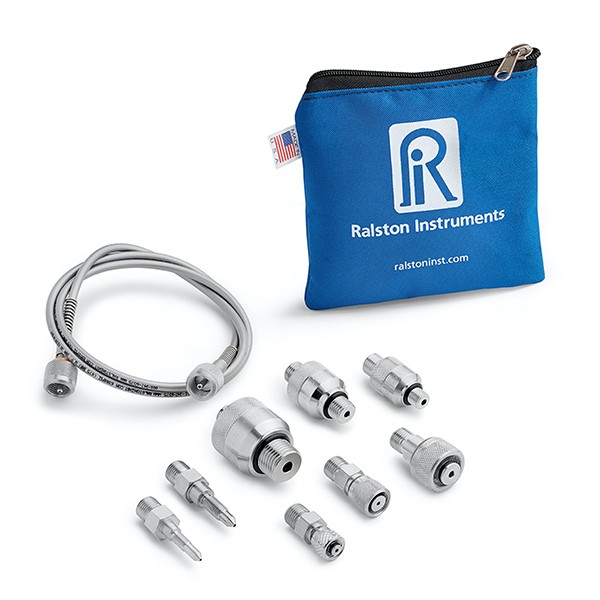

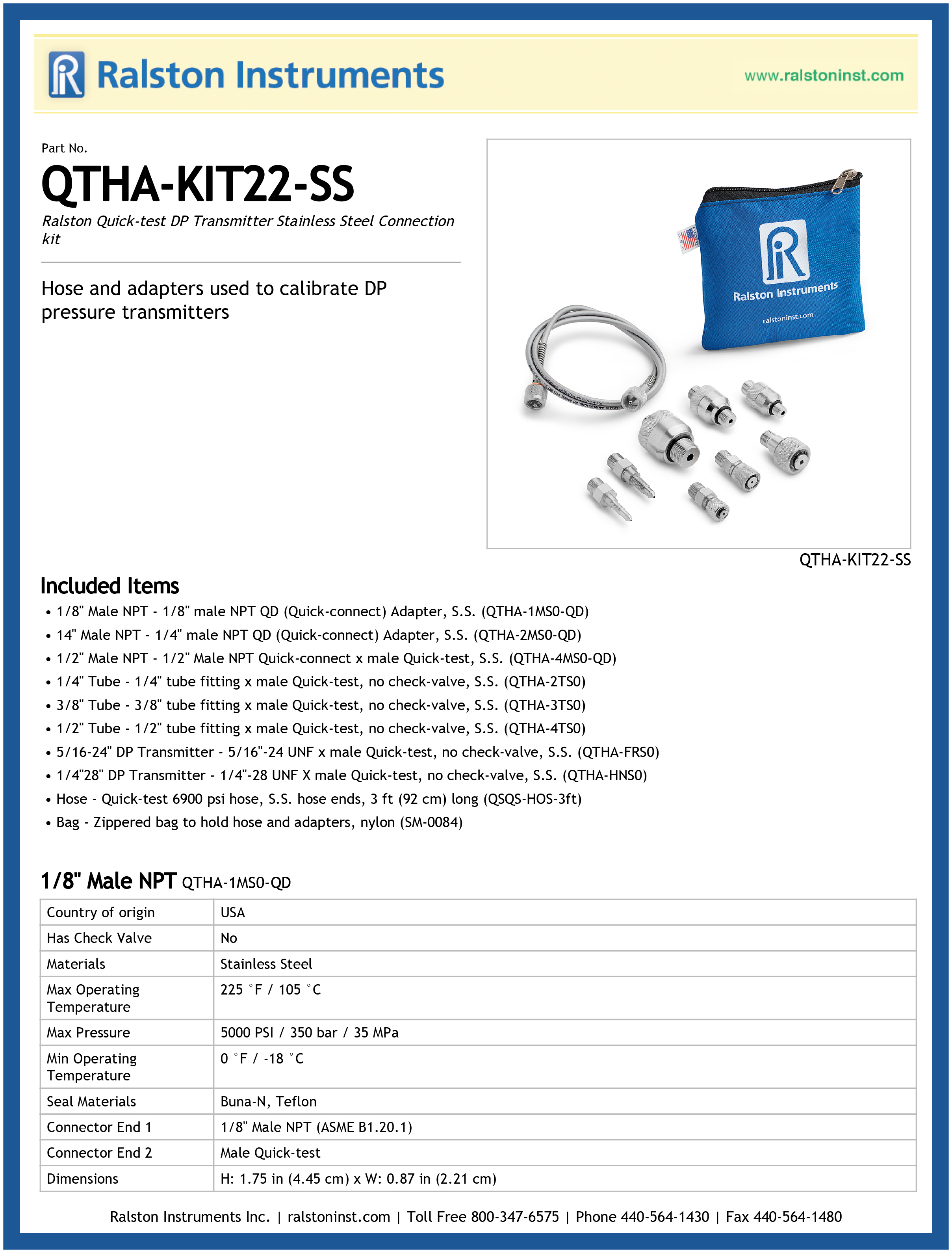

Hose and adapters used to calibrate DP pressure transmitters

• 1/8" Male NPT: 1/8" male NPT QD (Quick-connect) Adapter, S.S.
• 14" Male NPT: 1/4" male NPT QD (Quick-connect) Adapter, S.S.
• 1/2" Male NPT: 1/2" Male NPT Quick-connect x male Quick-test, S.S.
• 1/4" Tube: 1/4" tube fitting x male Quick-test, no check-valve, S.S.
• 3/8" Tube: 3/8" tube fitting x male Quick-test, no check-valve, S.S.
• 1/2" Tube: 1/2" tube fitting x male Quick-test, no check-valve, S.S.
• 5/16-24" DP Transmitter: 5/16"-24 UNF x male Quick-test, no check-valve, S.S.
• 1/4"28" DP Transmitter: 1/4"-28 UNF X male Quick-test, no check-valve, S.S.
• Hose: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

1/8" Male NPT QTHA-1MS0-QD

Length	1.75 in / 45 mm
Width	0.87 in / 23 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/8" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

14" Male NPT QTHA-2MS0-QD

Length	1.88 in / 48 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/2" Male NPT QTHA-4MS0-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/2" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/4" Tube QTHA-2TS0

Length	1.47 in / 38 mm
Width	0.56 in / 15 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
End 1 Connector	1/4" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

3/8" Tube QTHA-3TS0

Length	1.53 in / 39 mm
Width	0.72 in / 19 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	3/8" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/2" Tube QTHA-4TS0

Length	1.7 in / 44 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
End 1 Connector	1/2" Male Tube Fitting
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

5/16-24" DP Transmitter QTHA-FRS0

Length	2.16 in / 55 mm
Width	0.56 in / 15 mm
Compatible with	Rosemount 2051 Series DP Pressure Transmitters, Rosemount 3051 Series DP Pressure Transmitters, Yokogawa EJ series DP Pressure Transmitters, Anderson Greenwood M25 Block and Bleed Valves, Anderson Greenwood M251 Block and Bleed Valves, Foxboro (by Schneider Electric) IDP10, Foxboro (by Schneider Electric) IDP15, Foxboro (by Schneider Electric) IDP31, Foxboro (by Schneider Electric) IDP32, Foxboro (by Schneider Electric) IMV25
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	5/16-24 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

1/4"28" DP Transmitter QTHA-HNS0

Length	2.02 in / 52 mm
Width	0.56 in / 15 mm
Compatible with	Honeywell Smartline ST700 Pressure Transmitter, Honeywell Smartline ST800 Pressure Transmitter
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4-28 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

Hose QSQS-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

1/8" male NPT QD (Quick-connect) Adapter, S.S.

1/8" Male NPT

QTHA-1MS0-QD

1/4" male NPT QD (Quick-connect) Adapter, S.S.

14" Male NPT

QTHA-2MS0-QD

1/2" Male NPT Quick-connect x male Quick-test, S.S.

1/2" Male NPT

QTHA-4MS0-QD

1/4" tube fitting x male Quick-test, no check-valve, S.S.

1/4" Tube

QTHA-2TS0

3/8" tube fitting x male Quick-test, no check-valve, S.S.

3/8" Tube

QTHA-3TS0

1/2" tube fitting x male Quick-test, no check-valve, S.S.

1/2" Tube

QTHA-4TS0

5/16"-24 UNF x male Quick-test, no check-valve, S.S.

5/16-24" DP Transmitter

QTHA-FRS0

1/4"-28 UNF X male Quick-test, no check-valve, S.S.

1/4"28" DP Transmitter

QTHA-HNS0

Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

Hose

QSQS-HOS-3ft

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
