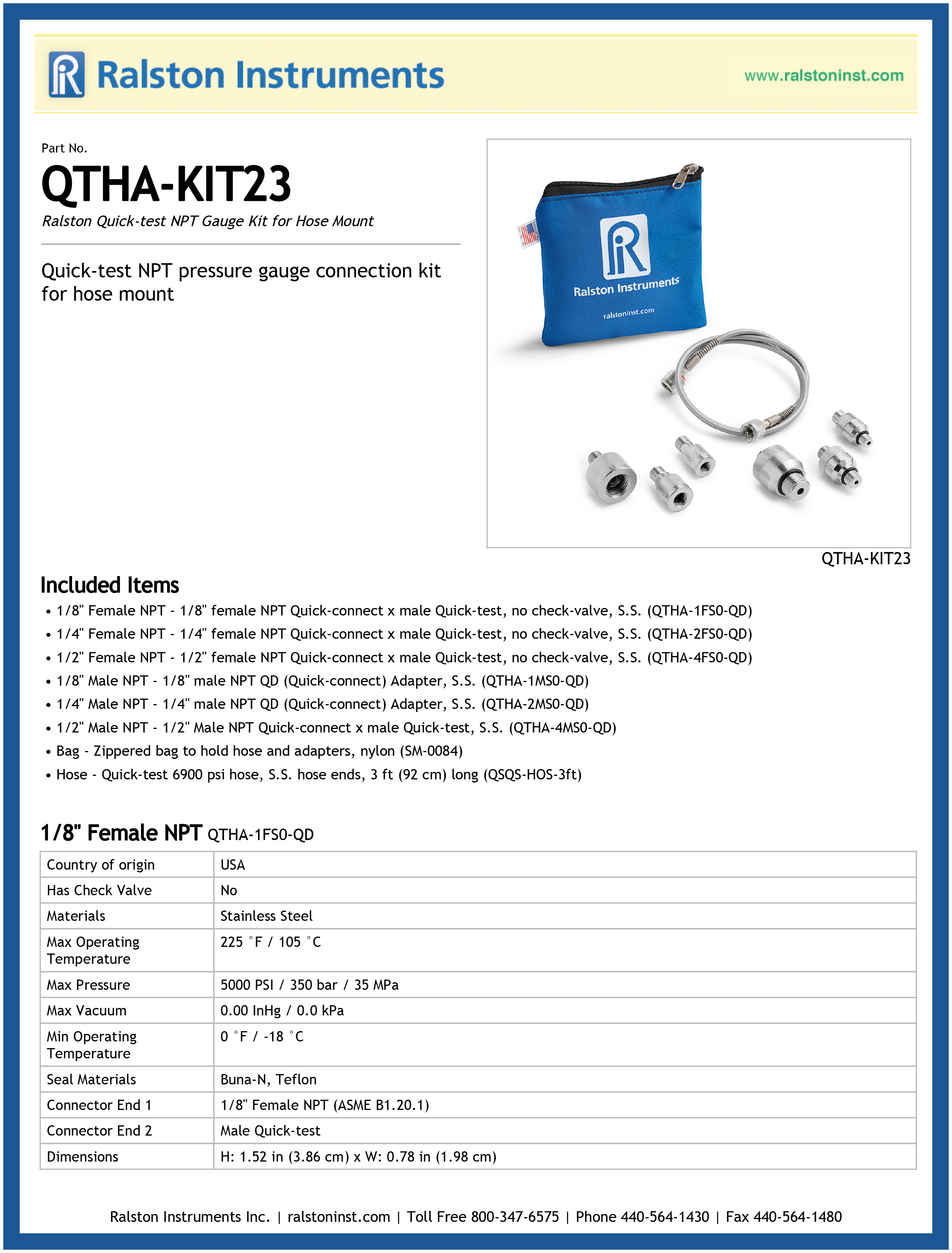

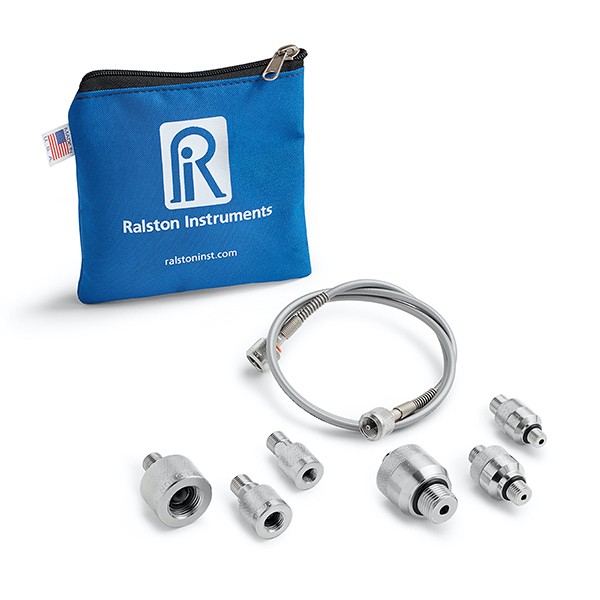

Quick-test NPT pressure gauge connection kit for hose mount

• 1/8" Female NPT: 1/8" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 1/4" Female NPT: 1/4" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 1/2" Female NPT: 1/2" female NPT Quick-connect x male Quick-test, no check-valve, S.S.
• 1/8" Male NPT: 1/8" male NPT QD (Quick-connect) Adapter, S.S.
• 1/4" Male NPT: 1/4" male NPT QD (Quick-connect) Adapter, S.S.
• 1/2" Male NPT: 1/2" Male NPT Quick-connect x male Quick-test, S.S.
• Bag: Zippered bag to hold hose and adapters, nylon
• Hose: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

Specifications

1/8" Female NPT QTHA-1FS0-QD

Length	1.52 in / 39 mm
Width	0.78 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/8" Female NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/4" Female NPT QTHA-2FS0-QD

Length	1.67 in / 43 mm
Width	0.94 in / 24 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/2" Female NPT QTHA-4FS0-QD

Length	1.69 in / 43 mm
Width	1.39 in / 36 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/2" Female NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test

1/8" Male NPT QTHA-1MS0-QD

Length	1.75 in / 45 mm
Width	0.87 in / 23 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/8" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/4" Male NPT QTHA-2MS0-QD

Length	1.88 in / 48 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

1/2" Male NPT QTHA-4MS0-QD

Country of origin	USA
Dimensions A	0 In / 0.00 mm
Dimensions B	0 In / 0.00 mm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N, Teflon
End 1 Connector	1/2" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Hose QSQS-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

Included Items

1/8" female NPT Quick-connect x male Quick-test, no check-valve, S.S.

1/8" Female NPT

QTHA-1FS0-QD

1/4" female NPT Quick-connect x male Quick-test, no check-valve, S.S.

1/4" Female NPT

QTHA-2FS0-QD

1/2" female NPT Quick-connect x male Quick-test, no check-valve, S.S.

1/2" Female NPT

QTHA-4FS0-QD

1/8" male NPT QD (Quick-connect) Adapter, S.S.

1/8" Male NPT

QTHA-1MS0-QD

1/4" male NPT QD (Quick-connect) Adapter, S.S.

1/4" Male NPT

QTHA-2MS0-QD

1/2" Male NPT Quick-connect x male Quick-test, S.S.

1/2" Male NPT

QTHA-4MS0-QD

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084

Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

Hose

QSQS-HOS-3ft
