퀵 테스트 DP 트랜스미터 스팅어 프로브 커넥터 키트 요약정보 및 구매

MODEL : QTHA-KIT30

제품문의

위시리스트 0 찜하기

브랜드	RALSTON INSTRUMENTS
판매가격	전화문의 (031-713-5988)
포인트	0점
배송정보	유료(주문시 결제) 점포택배 / 평균 7일 이내 도착(토,일,공휴일 제외)

상품 재고 보유중입니다.

제품 정보
관련 제품
제품 자료
구매후기(0)
배송 및 교환

제품 정보

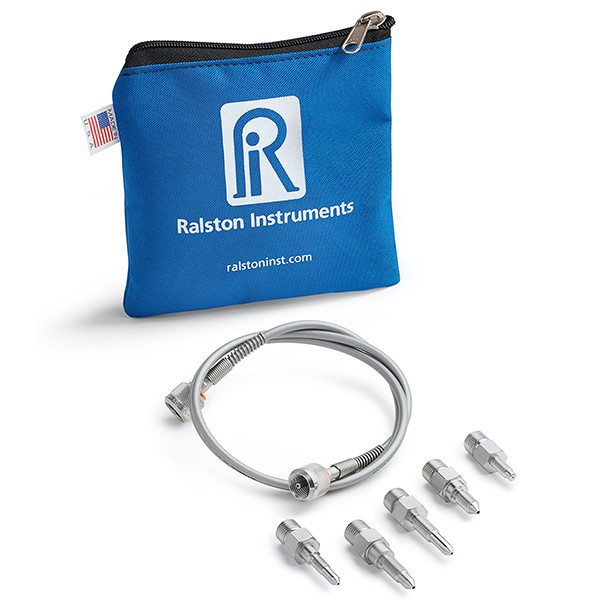

Connect to a wide variety of models of DP transmitters via the bleed port using a Quick-test hose

1/4-28 UNF: 1/4"-28 UNF X male Quick-test, no check-valve, S.S.
M8x1.25: DP Transmittter adapter for DP Transmitters with M8 x 1.25 bleed plugs, S.S.
1/4-20 UNC: 1/4"-20 UNC Male Bleed Port x male Quick-test adapter, S.S.
M8x1.0: M8 x 1.0 gauge valve bleed port x male Quick-test adapter, S.S.
Hose: Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long
5/16-24 UNF: 5/16"-24 UNF x male Quick-test, no check-valve, S.S.
Bag: Zippered bag to hold hose and adapters, nylon

· 제품 사양

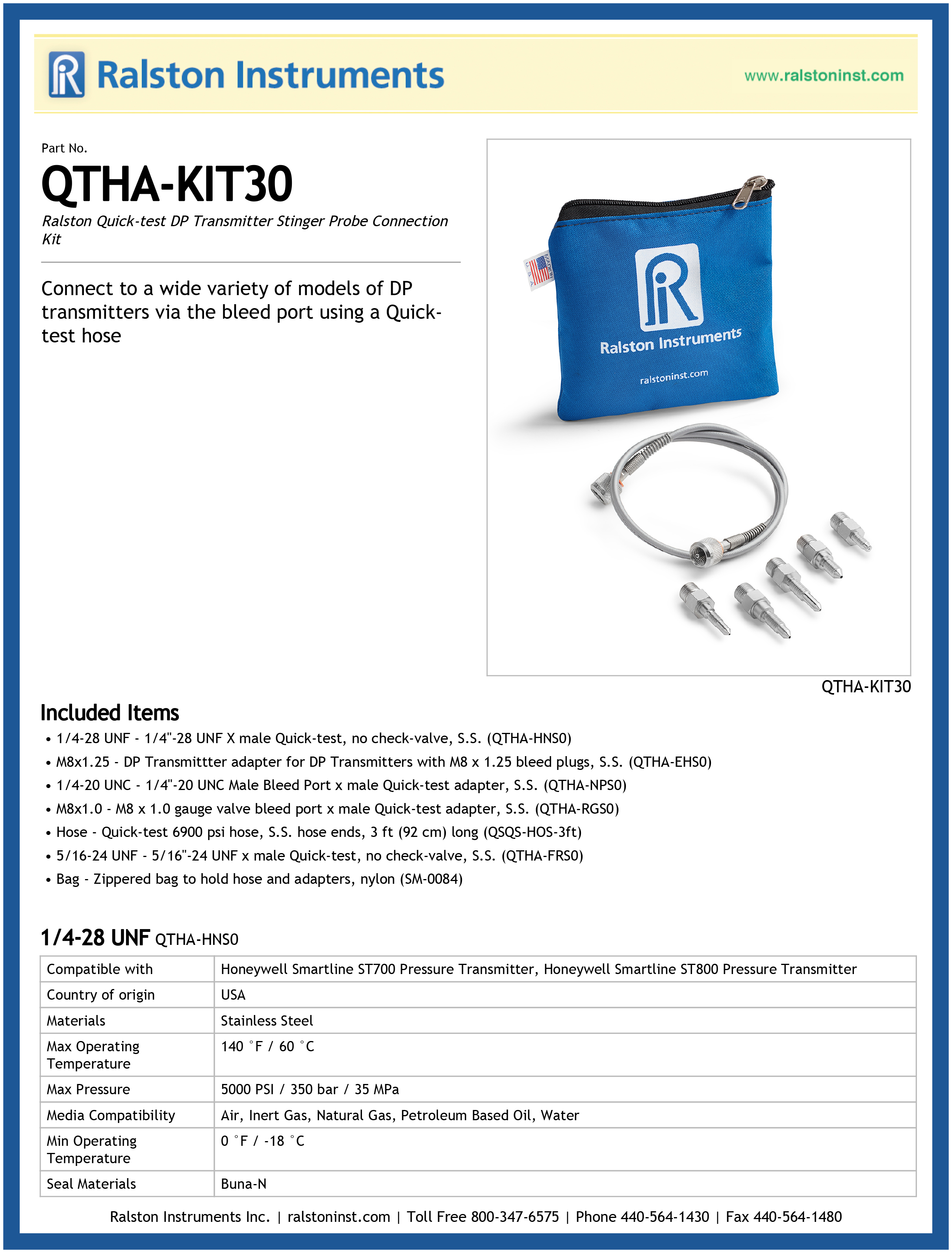

Specifications

1/4-28 UNF QTHA-HNS0

Length	2.02 in / 52 mm
Width	0.56 in / 15 mm
Compatible with	Honeywell Smartline ST700 Pressure Transmitter, Honeywell Smartline ST800 Pressure Transmitter
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4-28 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

M8x1.25 QTHA-EHS0

Compatible with	Endress + Hauser Deltabar PMD55 Transmitters, Endress + Hauser Deltabar PMD75 Transmitter
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	M8 x 1.25 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

1/4-20 UNC QTHA-NPS0

Compatible with	Noshok 600 Series Block and Bleed Valves, Noshok 700 Series Block and Bleed Valves, Noshok 2070 Series Block and Bleed Valves, Noshok 2170 Series Block and Bleed Valves, Parker PGI V-526 Series Block and Bleed Valves, Parker PGI V-527 Series Block and Bleed Valves
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4-20 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

M8x1.0 QTHA-RGS0

Compatible with	Rosemount 306 In-line Series Block and Bleed Valves
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	M8 x 1.0 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

Hose QSQS-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, stainless steel
Hose End 2	Female Quick-test, stainless steel

5/16-24 UNF QTHA-FRS0

Length	2.16 in / 55 mm
Width	0.56 in / 15 mm
Compatible with	Rosemount 2051 Series DP Pressure Transmitters, Rosemount 3051 Series DP Pressure Transmitters, Yokogawa EJ series DP Pressure Transmitters, Anderson Greenwood M25 Block and Bleed Valves, Anderson Greenwood M251 Block and Bleed Valves, Foxboro (by Schneider Electric) IDP10, Foxboro (by Schneider Electric) IDP15, Foxboro (by Schneider Electric) IDP31, Foxboro (by Schneider Electric) IDP32, Foxboro (by Schneider Electric) IMV25
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	5/16-24 Male DP Transmitter/Gauge valve
End 2 Connector	Male Quick-test

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

· 제품 구성

Included Items

1/4"-28 UNF X male Quick-test, no check-valve, S.S.

1/4-28 UNF

QTHA-HNS0

DP Transmittter adapter for DP Transmitters with M8 x 1.25 bleed plugs, S.S.

M8x1.25

QTHA-EHS0

1/4"-20 UNC Male Bleed Port x male Quick-test adapter, S.S.

1/4-20 UNC

QTHA-NPS0

M8 x 1.0 gauge valve bleed port x male Quick-test adapter, S.S.

M8x1.0

QTHA-RGS0

Quick-test 6900 psi hose, S.S. hose ends, 3 ft (92 cm) long

Hose

QSQS-HOS-3ft

5/16"-24 UNF x male Quick-test, no check-valve, S.S.

5/16-24 UNF

QTHA-FRS0

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
