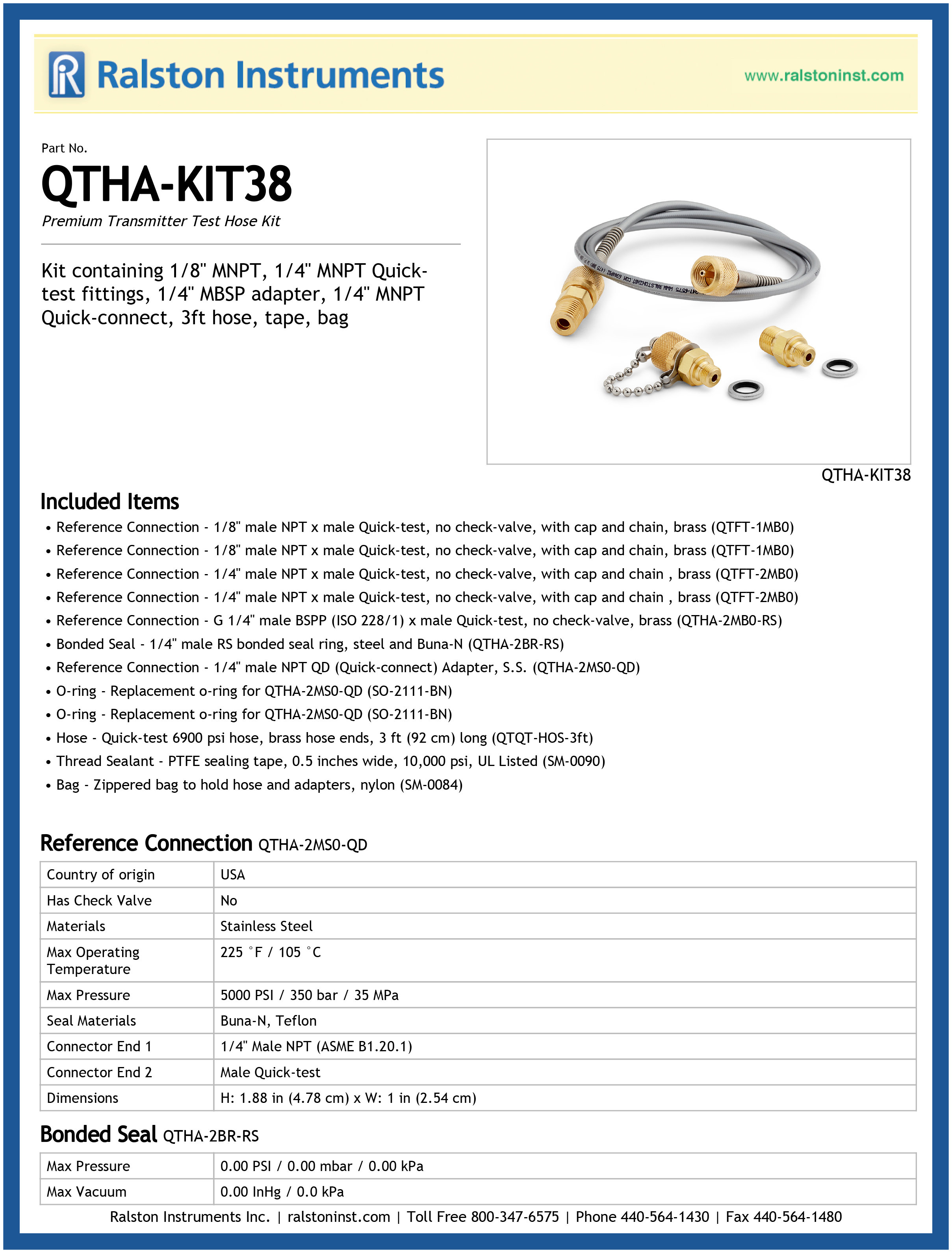

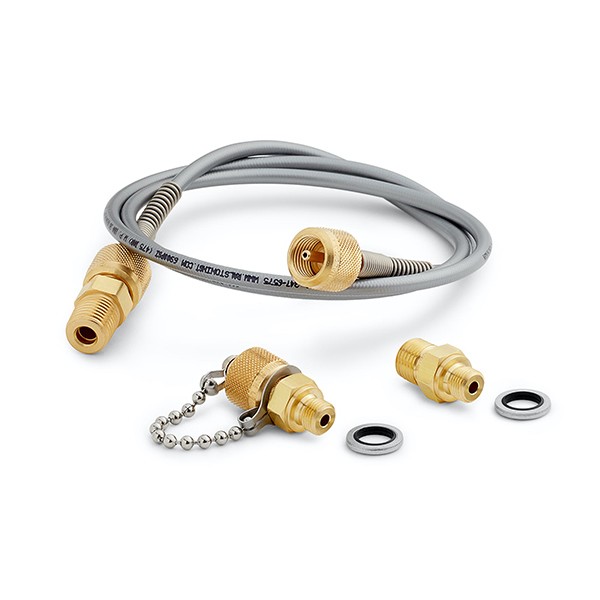

Kit containing 1/8" MNPT, 1/4" MNPT Quick-test fittings, 1/4" MBSP adapter, 1/4" MNPT Quick-connect, 3ft hose, tape, bag

• Reference Connection: 1/8" male NPT x male Quick-test, no check-valve, with cap and chain, brass
• Reference Connection: 1/8" male NPT x male Quick-test, no check-valve, with cap and chain, brass
• Reference Connection: 1/4" male NPT x male Quick-test, no check-valve, with cap and chain , brass
• Reference Connection: 1/4" male NPT x male Quick-test, no check-valve, with cap and chain , brass
• Reference Connection: G 1/4" male BSPP (ISO 228/1) x male Quick-test, no check-valve, brass
• Bonded Seal: 1/4" male RS bonded seal ring, steel and Buna-N
• Reference Connection: 1/4" male NPT QD (Quick-connect) Adapter, S.S.
• O-ring: Replacement o-ring for QTHA-2MS0-QD
• O-ring: Replacement o-ring for QTHA-2MS0-QD
• Hose: Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long
• Thread Sealant: PTFE sealing tape, 0.5 inches wide, 10,000 psi, UL Listed
• Bag: Zippered bag to hold hose and adapters, nylon

Specifications

Reference Connection QTFT-1MB0

Length	1.76 in / 45 mm
Width	0.71 in / 19 mm
Country of origin	USA
Has Cap and Chain	Yes
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	Male Quick-test
End 1 Cap and Chain	Yes
End 2 Connector	1/8" Male NPT (ASME B1.20.1)

Reference Connection QTFT-1MB0

Length	1.76 in / 45 mm
Width	0.71 in / 19 mm
Country of origin	USA
Has Cap and Chain	Yes
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	Male Quick-test
End 1 Cap and Chain	Yes
End 2 Connector	1/8" Male NPT (ASME B1.20.1)

Reference Connection QTFT-2MB0

Length	1.85 in / 47 mm
Width	0.71 in / 19 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test
End 2 Cap and Chain	Yes

Reference Connection QTFT-2MB0

Length	1.85 in / 47 mm
Width	0.71 in / 19 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Wrench Size	9/16 In / 15 mm
Wrench Size	15 mm / 9/16 in
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test
End 2 Cap and Chain	Yes

Reference Connection QTHA-2MB0-RS

Length	1.25 in / 32 mm
Width	0.75 in / 20 mm
Country of origin	USA
Materials	Brass
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Max Vacuum	0 InHg / 0.0 kPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Buna-N
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	G 1/4 Male BSPP (ISO 228)
End 2 Connector	Male Quick-test

Bonded Seal QTHA-2BR-RS

Max Pressure	0 PSI / 0.00 mbar / 0.00 kPa
Max Vacuum	0 InHg / 0.0 kPa
Materials	Plated Steel
Seal Materials	Buna-N
Country of origin	USA

Reference Connection QTHA-2MS0-QD

Length	1.88 in / 48 mm
Width	1 in / 26 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	5000 PSI / 350 bar / 35 MPa
Seal Materials	Buna-N, Teflon
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 1 Quick Disconnect	Yes
End 2 Connector	Male Quick-test

O-ring SO-2111-BN

Max Pressure	0 PSI / 0.00 mbar / 0.00 kPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Country of origin	USA

O-ring SO-2111-BN

Max Pressure	0 PSI / 0.00 mbar / 0.00 kPa
Max Vacuum	0 InHg / 0.0 kPa
Seal Materials	Buna-N
Country of origin	USA

Hose QTQT-HOS-3ft

Burst Pressure	27000 PSI / 1860 bar / 185 MPa
Color	Silver
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Hose Length	3ft / 0.91 m
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Brass
Max Operating Temperature	140 °F / 60 °C
Max Pressure	6900 PSI / 475 bar / 48 MPa
Max Vacuum	-30 InHg / -101.6 kPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.2 In / 6.00 mm
Type	QT
Hose End 1	Female Quick-test, brass
Hose End 2	Female Quick-test, brass

Thread Sealant SM-0090

Bag SM-0084

Weight	3 oz / 85 grams
Length	6 in / 16 cm
Width	1 in / 26 mm
Height	7 in / 18 cm
Materials	Zippered Nylon
Country of origin	USA

Included Items

1/8" male NPT x male Quick-test, no check-valve, with cap and chain, brass

Reference Connection

QTFT-1MB0

1/8" male NPT x male Quick-test, no check-valve, with cap and chain, brass

Reference Connection

QTFT-1MB0

1/4" male NPT x male Quick-test, no check-valve, with cap and chain , brass

Reference Connection

QTFT-2MB0

1/4" male NPT x male Quick-test, no check-valve, with cap and chain , brass

Reference Connection

QTFT-2MB0

G 1/4" male BSPP (ISO 228/1) x male Quick-test, no check-valve, brass

Reference Connection

QTHA-2MB0-RS

1/4" male RS bonded seal ring, steel and Buna-N

Bonded Seal

QTHA-2BR-RS

1/4" male NPT QD (Quick-connect) Adapter, S.S.

Reference Connection

QTHA-2MS0-QD

Replacement o-ring for QTHA-2MS0-QD

O-ring

SO-2111-BN

Replacement o-ring for QTHA-2MS0-QD

O-ring

SO-2111-BN

Quick-test 6900 psi hose, brass hose ends, 3 ft (92 cm) long

Hose

QTQT-HOS-3ft

PTFE sealing tape, 0.5 inches wide, 10,000 psi, UL Listed

Thread Sealant

SM-0090

Zippered bag to hold hose and adapters, nylon

Bag

SM-0084
