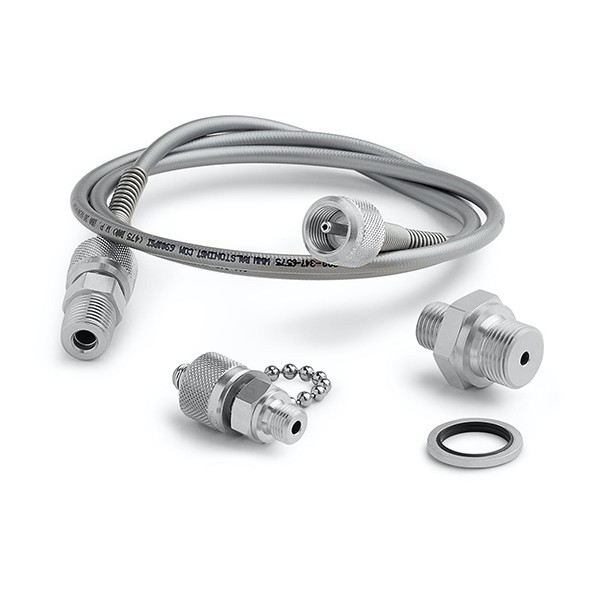

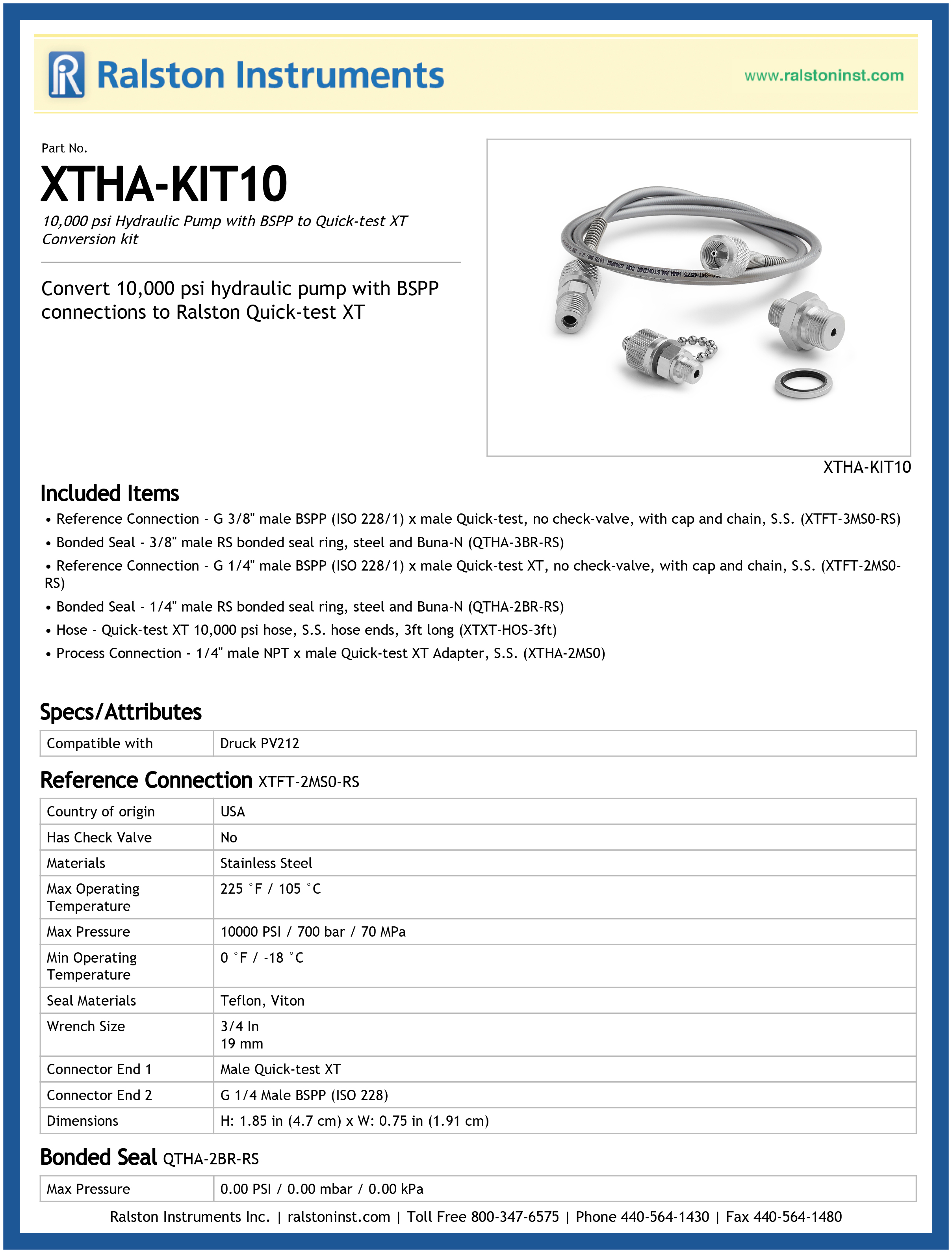

Convert 10,000 psi hydraulic pump with BSPP connections to Ralston Quick-test XT

• Reference Connection: G 3/8" male BSPP (ISO 228/1) x male Quick-test, no check-valve, with cap and chain, S.S.
• Bonded Seal: 3/8" male RS bonded seal ring, steel and Buna-N
• Reference Connection: G 1/4" male BSPP (ISO 228/1) x male Quick-test XT, no check-valve, with cap and chain, S.S.
• Bonded Seal: 1/4" male RS bonded seal ring, steel and Buna-N
• Hose: Quick-test XT 10,000 psi hose, S.S. hose ends, 3ft long
• Process Connection: 1/4" male NPT x male Quick-test XT Adapter, S.S.

Reference Connection XTFT-3MS0-RS

Length	1.85 in / 47 mm
Width	0.88 in / 23 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
Wrench Size	7/8 In / 23 mm
Wrench Size	23 mm / 7/8 in
End 1 Connector	G 3/8 Male BSPP (ISO 228)
End 2 Connector	Male Quick-test XT
End 2 Cap and Chain	Yes

Bonded Seal QTHA-3BR-RS

Reference Connection XTFT-2MS0-RS

Length	1.85 in / 47 mm
Width	0.75 in / 20 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
Wrench Size	3/4 In / 20 mm
Wrench Size	19 mm / 23/32 in
End 1 Connector	Male Quick-test XT
End 1 Cap and Chain	Yes
End 2 Connector	G 1/4 Male BSPP (ISO 228)

Bonded Seal QTHA-2BR-RS

Hose XTXT-HOS-3ft

Burst Pressure	40000 PSI / 2760 bar / 275 MPa
Color	Blue
Country of origin	USA
Fluid Media	Air,Inert Gas,Natural Gas,Petroleum Based Oil,Water
Inner Diameter	0.08 In / 3.00 mm
Length	3 ft / 92 cm
Materials	Reinforced Polyamide, Stainless Steel
Max Operating Temperature	140 °F / 60 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Media Compatibility	Air, Inert Gas, Natural Gas, Petroleum Based Oil, Water
Min Operating Temperature	-40 °F / -40 °C
Minimum Bend Radius	1 In / 26 mm
Outer Diameter	0.24 In / 7.00 mm
Type	XT
Hose End 1	Female Quick-test XT, stainless steel
Hose End 2	Female Quick-test XT, stainless steel

Process Connection XTHA-2MS0

Length	1.29 in / 33 mm
Width	0.63 in / 17 mm
Country of origin	USA
Materials	Stainless Steel
Max Operating Temperature	225 °F / 105 °C
Max Pressure	10000 PSI / 700 bar / 70 MPa
Min Operating Temperature	0 °F / -18 °C
Seal Materials	Teflon, Viton
Wrench Size	5/8 In / 16 mm
Wrench Size	16 mm / 5/8 in
End 1 Connector	1/4" Male NPT (ASME B1.20.1)
End 2 Connector	Male Quick-test XT
