It stands out due to its pressure sensors, which are based on the MEMS technology, and that combine maximum precision with highest long-term stability.

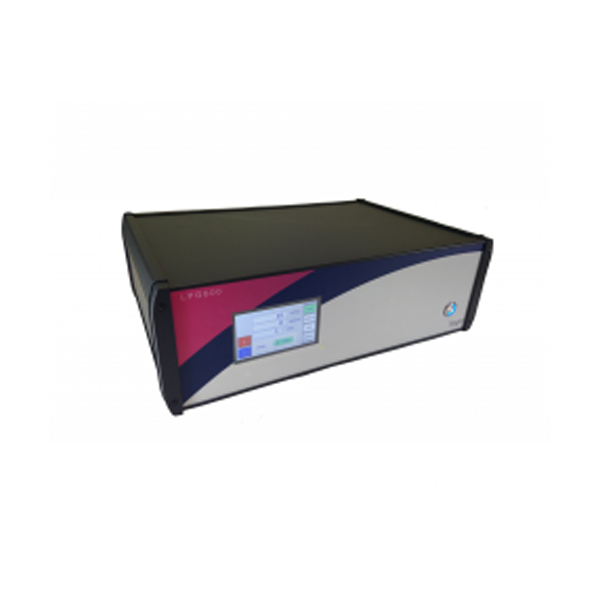

The LPG 800 achieves a control stability of 0.003 % FS of the currently active pressure range. The instrument is operated intuitively via a touch screen. All extended functions are accessible via submenues. Besides the optionally available calibration software DCal, which allows for comfortable calibration of pressure measuring instruments, including automatic creation of test certificates, the user is able to create own software programmes.

APPLICATIONS

- Laboratories

- Service industries and calibration services

- Research and development

- Transmitter calibration

HIGHLIGHTS

- Up to 3 modular sensors

- Completely mobile/ stationary test equipment

- Analogue output 4 - 20 mA

- Very high measuring rate (up to 100 bar 0,015FS)

- Barometer sensor optional (up to 0,008%FS)
