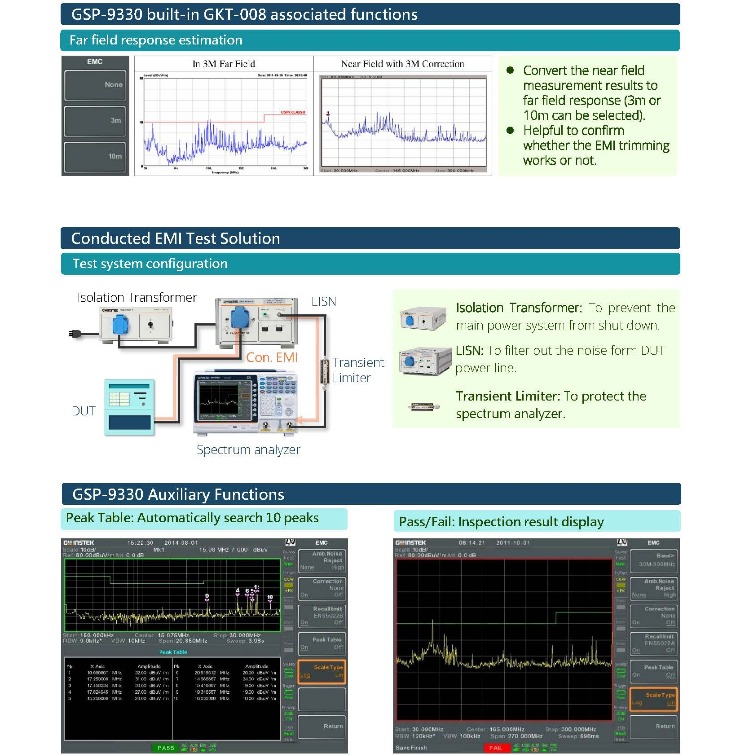

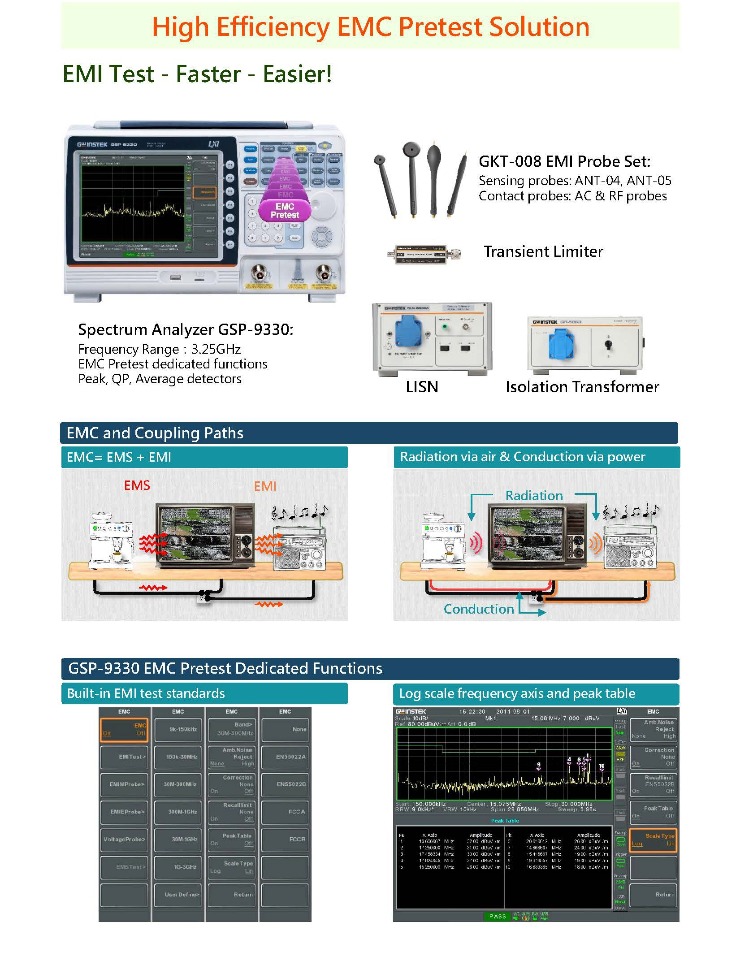

GSP-9330 specifications

Go to check GSP-9330 specifications

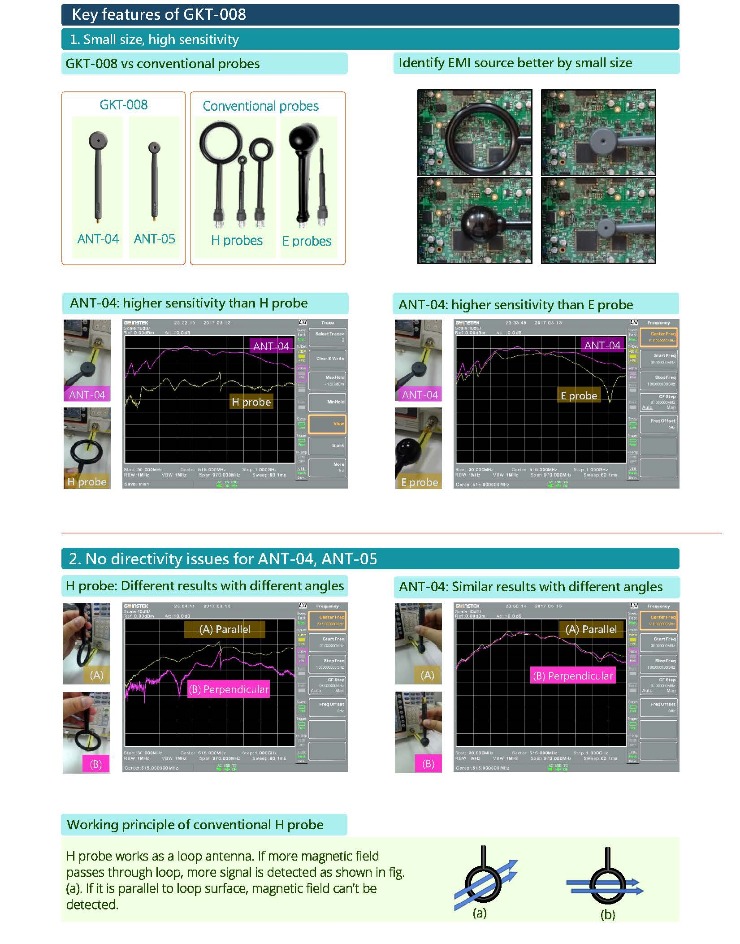

GKT-008 specifications

PR-01

PR-02

Frequency Range

150kHz to 30 MHz

FrequencyRange

30MHzto 3GHz

Insertion Loss S21 / Frequency Response

5dB / -3.6 dB (Avg.)

InsertionLoss S21 / Frequency Response

10dB / -13.5 dB (Avg.)

Deviation of Insertion Loss

±1dB

Deviationof Insertion Loss

±3dB

Connector

50Ω (SMA)

Connector

50Ω (SMA)

Input Resistance

10MΩ

InputResistance

1MΩ

Rated Voltage

300VAC

RatedVoltage

50VDC

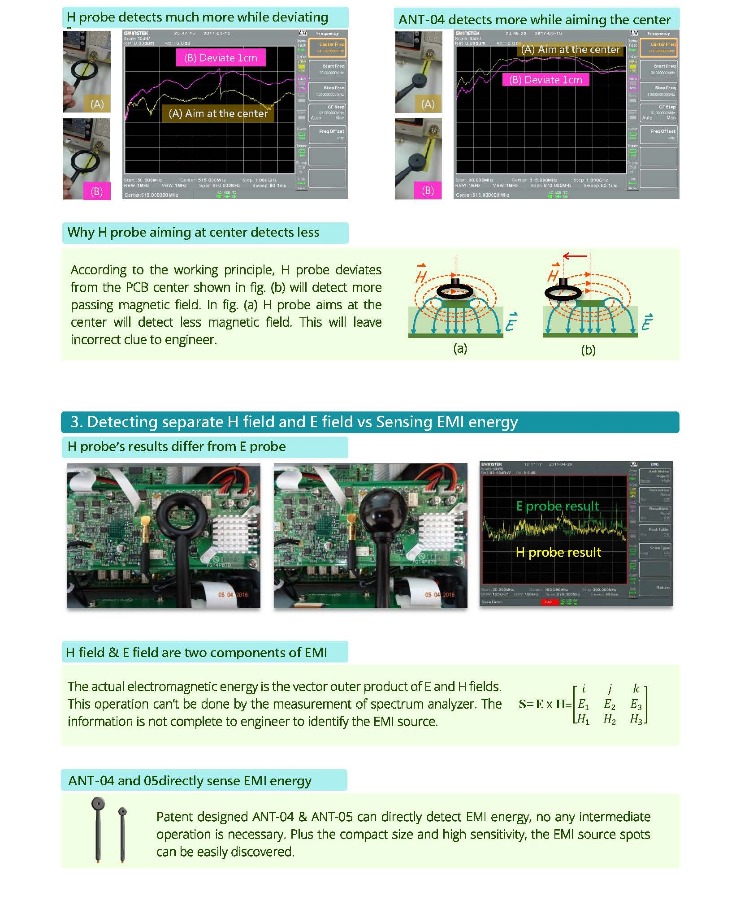

ANT-04

ANT-05

Frequency Range

30MHz to 3 GHz

FrequencyRange

30MHzto 3GHz

Correction Factor / Frequency Response

10dB / -26.5 dB (Avg.)

CorrectionFactor / Frequency Response

10dB / -26.5 dB (Avg.)

Deviation of Correction Factor

±4dB

Deviationof Correction Factor

±4dB

Connector

50Ω (SMA )

Connector

50Ω (SMA)

Maximum Input Power

0.5W

MaximumInput Power

0.5W

Frequency Range

9kHz to 30MHz

Circuit Type

(50uH + 5Ω) // 50 Ω, V type

Test Circuit Phase Number

Single phase

AC Voltage Range

0 ~ 240V AC + 10%

AC Frequency Range

50 ~ 60 Hz ±5%

DC Voltage Range

0 ~ 50V DC

Maximum Permitted Current(Continuous) Country-Specific Connector Models Refer to Figure 1

Model1

Model2

Model3

Model4

Germany

United Kingdom

China/Australia

USA/Japan

(Schuko connector)

16A

13A

10A

15A

High Pass Filter (Alternative)

150 kHz

Voltage Division Factor between EUT and Measuring Receiver Port

10 dB

Response Threshold of Built-In Pulse Limiter

130 dBuV

RF Output

BNC (F) / 50Ω

Artificial Hand Function

Embodied

EUT power supply Interface

German Standard Power Supply Socket

Operating Temperature

5 ∘C to 45∘ C

Storage Temperature

-40 ∘C to 70∘ C

Dimensions / Weight

338mm (L) x 237mm (W) x 133mm (H) / 4.2 Kg

Certification

EN61010-1:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013

Frequency Range

9kHz to 200MHz

Threshold Value Limit

50mW (17 dBm)

Input / Output Impedance

50Ω

Input Connector

BNC (F)

Output Connector

N-type (M)

Maximum Input Range

Continuous Power : 2.5W (34dBm)

Pulse Power : 10 kW (10us)

DC Voltage : ±12V

Insertion Loss

<2 kHz

>30 dB

9kHz to 50MHz

10dB±0.5dB

50MHz to 200MHz

9.5dB~ 12.2dB

<6 kHz , >400MHz

>13dB

Operating Temperature

0 ∘C to 55∘ C

Storage Temperature

-40 ∘C to 80∘C

Dimensions / Weight

18mm(L) x 44mm(W) x 23mm(H) / 92 g

Certification

EN61010-1:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013

패키지 구성

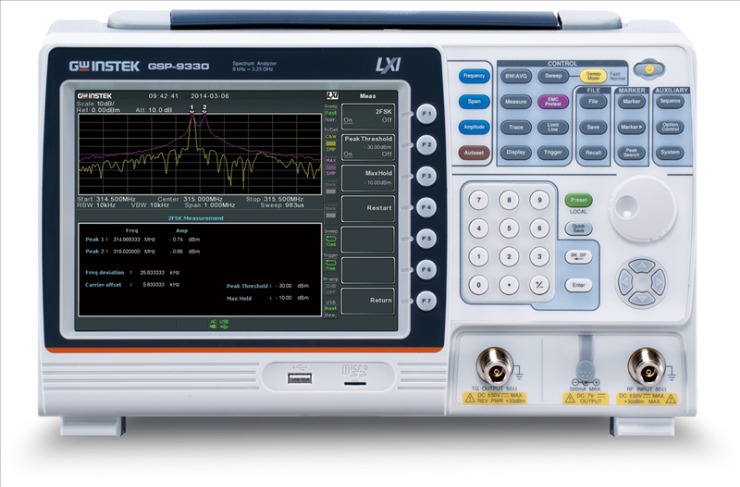

GSP-9330

Spectrum Analyzer : Power Cord, Certificate of Calibration, CD-ROM (with User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Quick Start Guide & IVI Driver)

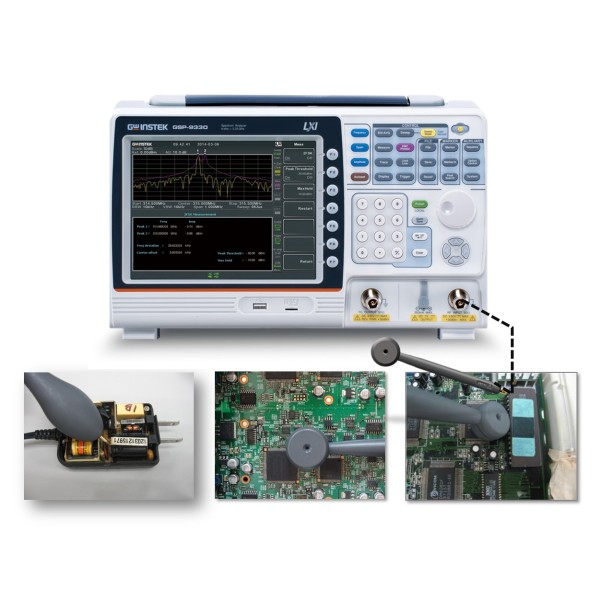

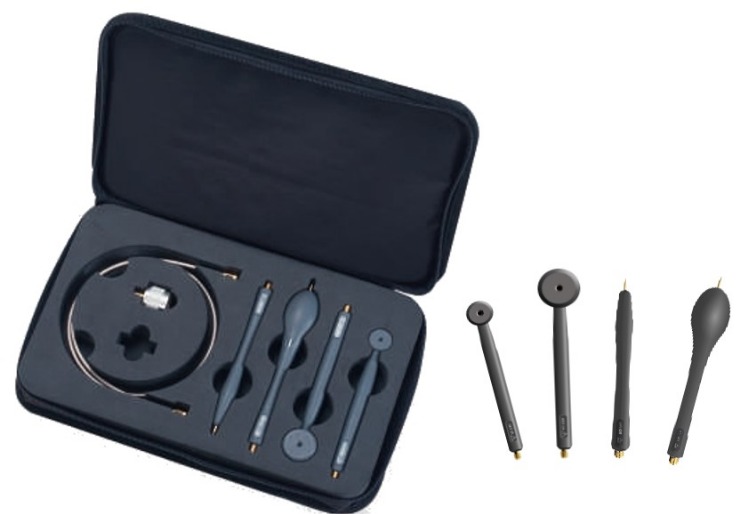

GKT-008

EMI Probe Set : PR-01, PR-02, ANT-04, ANT-05

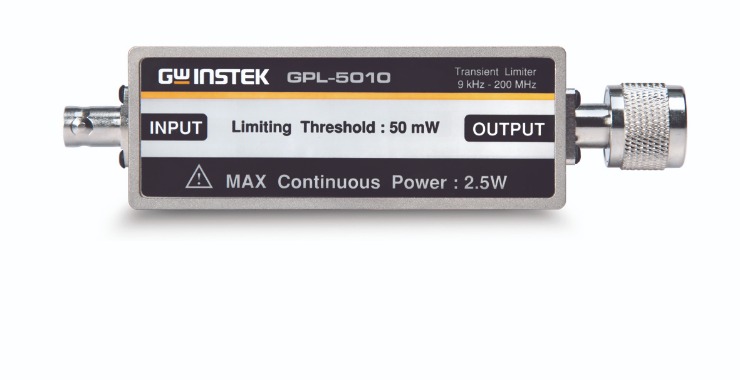

GPL-5010

Transient Limiter : User Manual，Warranty Card，Test Report，Adaptor BNC(M) to SMA(F)

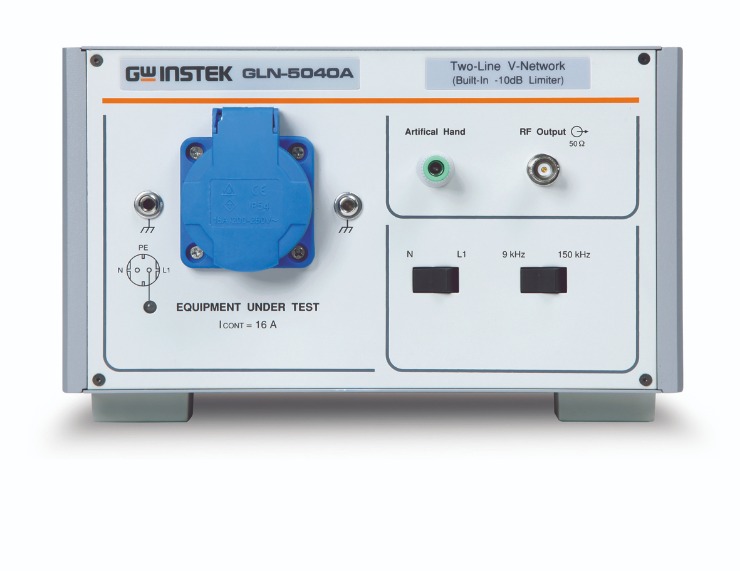

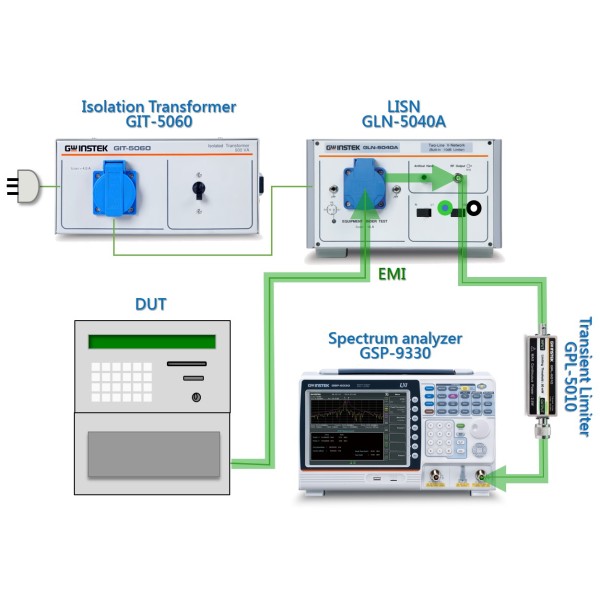

GLN-5040A

Two-Line-V-Network(LISN) : User Manual，Adaptor BNC(F) to N-type(M)，Cable BNC(M) to BNC(M)，German Standard Power Adaptor，Warranty Card，Test Report

ADB-008

DC Block : 50ohm，SMA(male)~SMA(female)，0.1MHz-8GHz
