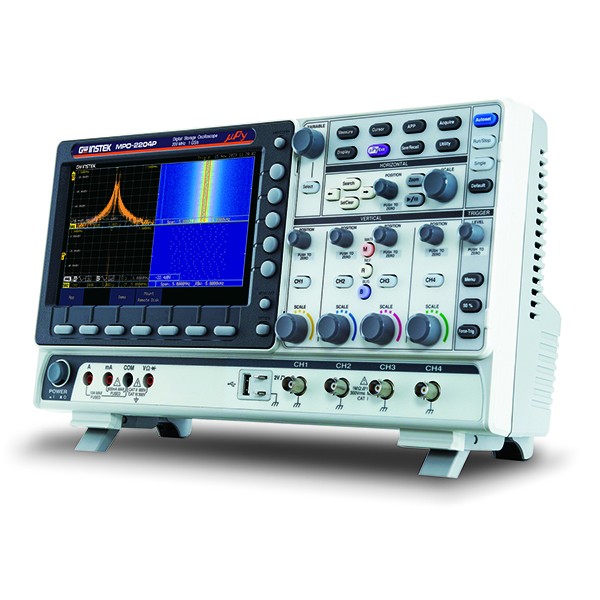

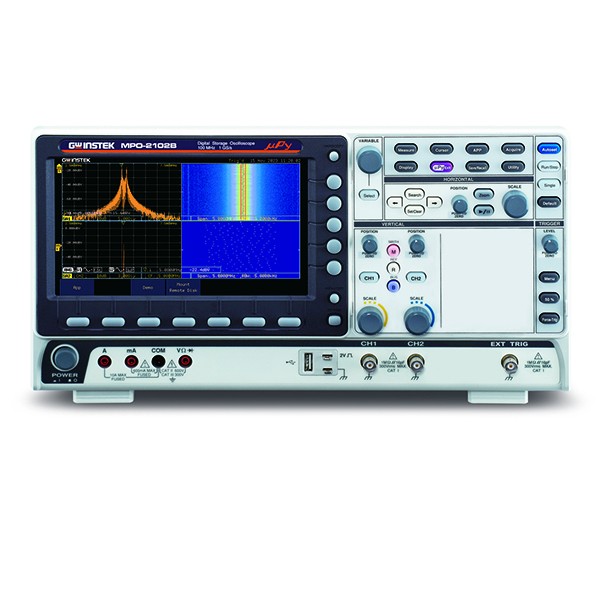

MPO-2000 series Specifications

MPO-2102B

MPO-2104B

MPO-2202P

MPO-2204P

Channels

2ch+Ext

4ch

2ch+Ext

4ch

Bandwidth

DC~100MHz

DC~100MHz

DC~200MHz

DC~200MHz

(-3dB)

(-3dB)

(-3dB)

(-3dB)

Rise time(Calculated)

3.5ns

3.5ns

1.75ns

1.75ns

Bandwidth Limit

20MHz

20MHz

20M/100MHz

20M/100MHz

Python Script Execution (μPy)

Basic version

Basic version

Professional version

Professional version

Vertical Sensitivity

Resolution

8 bits

1mV~10V/div

Input Coupling

AC, DC, GND

Input Impedance

1MΩ// 16pF  approx.

DC Gain Accuracy

±(3%) when 2mV/div or greater is selected

±(5%) when 1mV/div is selected

Polarity

Normal & Invert

Maximum Input Voltage

300Vrms, CAT I

Offset Position Range

1mV/div ~ 20mV/div : ±0.5V

50mV/div ~ 200mV/div : ±5V

500mV/div ~ 2V/div : ±25V

5V~10V/div : ±250V

Waveform Signal Process

 +, -, ×, ÷, FFT, User Defined Expression.

FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman.

Trigger

Source

CH1 ,CH2, CH3*, CH4*, Line, EXT**

* four channel models only

**dual channel models only

Trigger Mode

Auto (supports Roll Mode for 100ms/div and slower), Normal, Single

Trigger Type

Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate, time out, Event-Delay(1~65535 events), Time-Delay(Duration,4ns~10s), Bus (UART, C, SPI*, CAN, LIN)

*This bus decoder is only available on 4 channel models.

Holdoff range

4ns~10s

Coupling

AC, DC, LF rej., HF rej., Noise rej.

Sensitivity

1div

External Trigger

Range

±15V

Sensitivity

DC ~ 100MHz Approx. 100mV

100MHz ~ 200MHz Approx. 150mV

Input Impedance

1MΩ±3%~16pF

Horizontal

Time base Range

1ns/div ~ 100s/div (1-2-5 increments)

ROLL: 100ms/div ~ 100s/div

Pre-trigger

10 div maximum

Post-trigger

2,000,000 div maximum.

Time base Accuracy

±50 ppm over any ≥ 1ms time interval

Real Time Sample Rate

Max.1GSa/s (4ch models)
Per channel 1GSa/s (2ch models)

Record Length

Max. 10M pts

Acquisition Mode

Normal, Average, Peak Detect, Single

Peak Detection

2ns (typical)

Average

selectable from 2 to 512

X-Y Mode

X-Axis Input

Channel 1; Channel 3*

*four channel models only

Y-Axis Input

Channel 2; Channel 4*

*four channel models only

Phase Shift

±3° at 100kHz

Cursors and Measurement

Cursors

Amplitude, Time, Gating available; Unit: Seconds(s), Hz(1/s), Phase(degree), Ratio(%)

Automatic Measurement

38 sets: Pk-Pk, Max, Min, Amplitude, High, Low, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area, ROVShoot, FOVShoot, RPREShoot, FPREShoot, Frequency, Period, RiseTime, FallTime, +Width, -Width, Duty Cycle, +Pulses, -Pulses, +Edges, -Edges, %Flicker ,Flicker Idx,FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase

Cursors measurement

Voltage difference between cursors (∆V)

Time difference between cursors (∆T)

Auto counter

6 digits, range from 2Hz minimum to the rated bandwidth

Control Panel Function

Autoset

Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with “Undo Autoset”;

 “Fit Screen”/ “AC Priority” mode, and “Fine Scale” functions.

Save Setup

20 sets

Save Waveform

24 sets

Display

TFT LCD Type

8" TFT LCD WVGA color display

Display Resolution

800 horizontal × 480 vertical pixels (WVGA)

Interpolation

Sin(x)/x

Waveform Display

Dots, vectors, variable persistence (16ms~4s), infinite persistence

Waveform Update Rate

120,000 waveforms per second, maximum

Display Graticule

8 x 10 divisions

Display mode

YT ;XY

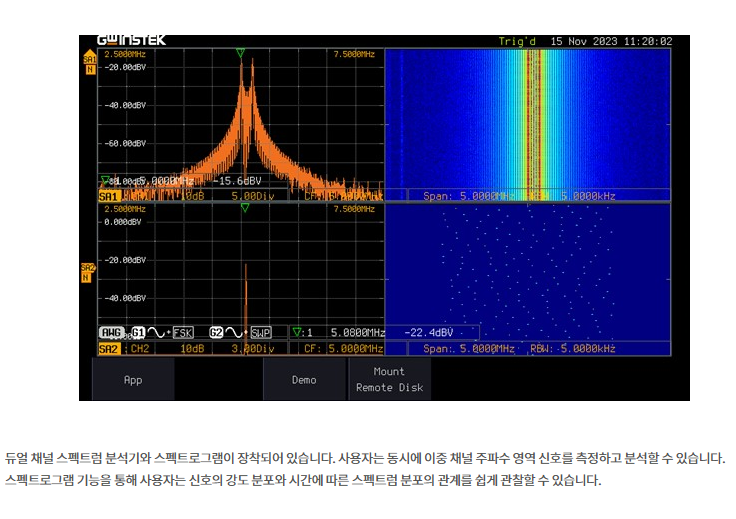

Spectrum Analyzer Specifications

Frequency range

DC~500MHz Max., dual channel with spectrogram (based on Advanced FFT).

Notice: Frequency which exceeds analog front end bandwidth is uncalibrated)

Span

1kHz~500MHz (Max.)

Resolution bandwidth

1Hz ~ 500kHz (Max.)

Reference level

 -50 dBm to +40dBm in steps of 5dBm

Vertical units

dBV RMS; Linear RMS; dBm

Vertical position

-12divs to +12divs

Vertical scale

1dB/div to 20dB/div in a 1-2-5 Sequence

Display average noise level

1V/div < -50dBm, Avg : 16
100mV/div  < -70dBm, Avg : 16
10mV/div  < -90dBm, Avg : 16

Spurious response

2nd harmonic distortion< 40dBc
3rd harmonic distortion< 45dBc

Frequency domain trace types

Normal ; Max Hold ; Min Hold ; Average (2 ~ 512)

Detection methods

Sample ; +Peak ; -Peak ; Average

FFT Windows

FFT Factor :

Hanning 1.44

Rectangular 0.89

Hamming 1.30

Blackman 1.68

 AWG  Specifications

Channels

2

Sample Rate

200 MSa/s

Vertical Resolution

14 bits

Max. Frequency

25 MHz

Waveforms

Arbitrary, Sine, Square, Pulse, Ramp, DC, Noise,  Sinc, Gaussian, Lorentz, Exponential Rise, Exponential Fall, Haversine, Cardiac

Output Range

20mVpp to 5 Vpp, HighZ; 10mVpp to 2.5 Vpp, 50 Ω

Output Resolution

1mV

Output Accuracy

2% (1 kHz)

Offset Range

±2.5V, High Z; ±1.25V, 50 Ω

Offset Resolution

1mV

Sine

Frequency Range

100mHz to 25MHz

Flatness

(relative to 1 kHz)

±0.5 dB<15MHz

±1dB 15MHz~25MHz

Harmonic Distortion

-40 dBc

Stray (Non-harmonic)

-40 dBc

Total Harmonic Distortion

1%

S/N Ratio

40 dB

Square/Pulse

Frequency Range

100 mHz to 15MHz

Rise/Fall time

<15ns

Overshoot

<3%

Duty cycle

Square:50%; Pulse:0.4%~99.6%

Min. Pulse Width

30ns

Jitter

500ps

Ramp

Frequency Range

100mHz~1MHz

Linearity

1%

Symmetry

0 to 100%

DMM Specifications

Reading

Voltage Input

 5,000 counts

CAT II 600Vrms, CAT III 300Vrms

Below are the basic conditions required to operate the DMM within specifications:

*Calibration: Yearly.

*Operating Temperature Specification: 18~28˚C (64.4~82.4˚F).

*Relative humidity: 80%. (Non-condensing)

*Accuracy: ± (% of Reading +% of Range).

*AC measurement are based on a 50% duty cycle.

DC VOLTAGE

50mV, 500mV, 5V, 50V, 500V, 1000V  6 ranges

 Accuracy

50mV, 500mV, 5V, 50V, 500V,1000V ±(0.1% +0.1%)

Input Impedance

10MΩ

DC CURRENT

 50mA, 500mA, 10A   3 ranges

 Accuracy

50mA - 500mA  ±(0.5% + 0.1%)

10A  ±(0.5% + 0.5%)

 AC VOLTAGE

 50mV, 500mV, 5V, 50V, 700V  5 ranges

 Accuracy

 50mV, 500mV, 5V, 50V, 700V  ±(1.5% +1.5%) at 50Hz-1kHz

 AC CURRENT

50mA, 500mA, 10A 3 ranges

 Accuracy*

 50mA, 500mA, ±(1.5% + 0.1%)  at 50Hz-1kHz

10A ±(3% +0.5%)  at 50Hz-1kHz

* Measure range: >10mA

RESISTANCE

500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 5 ranges

 Accuracy*

500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ: ±(0.3% + 0.01%)

*Measure range: 50Ω to 5MΩ

Diode Test

Maximum forward voltage 1.5V,

Open voltage 2.8V

Temperature (Thermocouple)*

Range: -50°C ~ + 1000°C

Resolution: 0.1°C

* Specifications do not include probe accuracy.

Continuity Beeper

15 Ω

Power supply Specifications

Output Channel

CH1 & CH2

Output range

1V~5V/1A; 5V~10V/0.5A; 10V~20V/0.25A

Peak current: 1A @250ms

Voltage Step

0.1V Continuously Adjustable

output Voltage Accuracy

±3%

Ripple and Noise

50mVrms

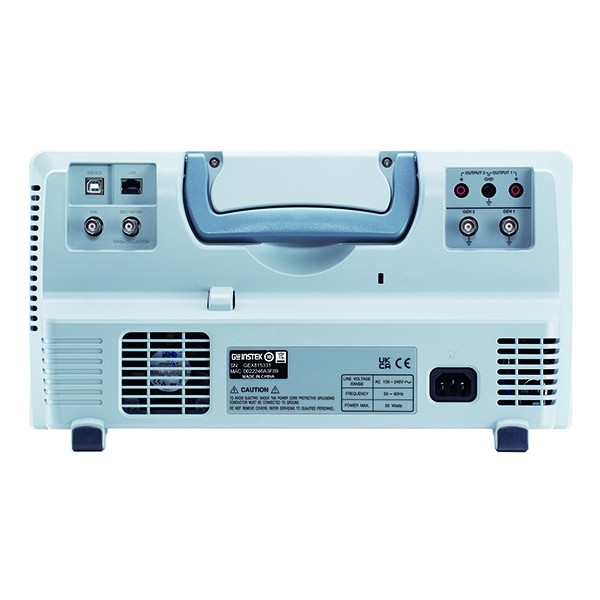

Interface

USB 2.0 Hi-speed Host Port

One on the front panel. Supporting USB2.0 Mass Storage Class (FAT32 or NTFS formatted).

Professional version (MPO-2000P series) also supports USB CDC ACM Class and USB HID Class

USB 2.0 Hi-speed Device Port

One on the rear panel, USBTMC Class is supported.

Ethernet(LAN) Port

RJ-45 connector, 10/100Mbps with HP Auto-MDIX which also supporting TCP sockets communication, the TCP socket communication is using the default 5025 port number.

Web server

Supporting remote control and monitoring of the oscilloscope in web browser by using the LAN.

Go-NoGo BNC

5V Max/10mA TTL open collector output

Kensington Style Lock

Rear-panel security slot connects to standard Kensington-style lock.

Miscellaneous

Multi-language menu

Available

Operation environment

Temperature: 0°C to 50°C. Relative Humidity ≤ 80% at 40°C or below; ≤ 45% at 41°C ~ 50°C.

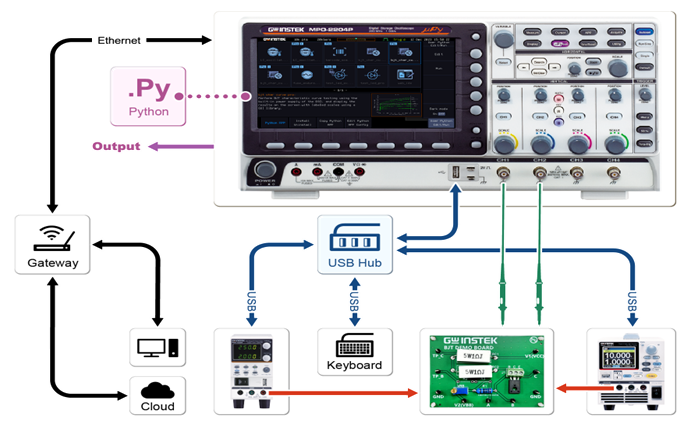

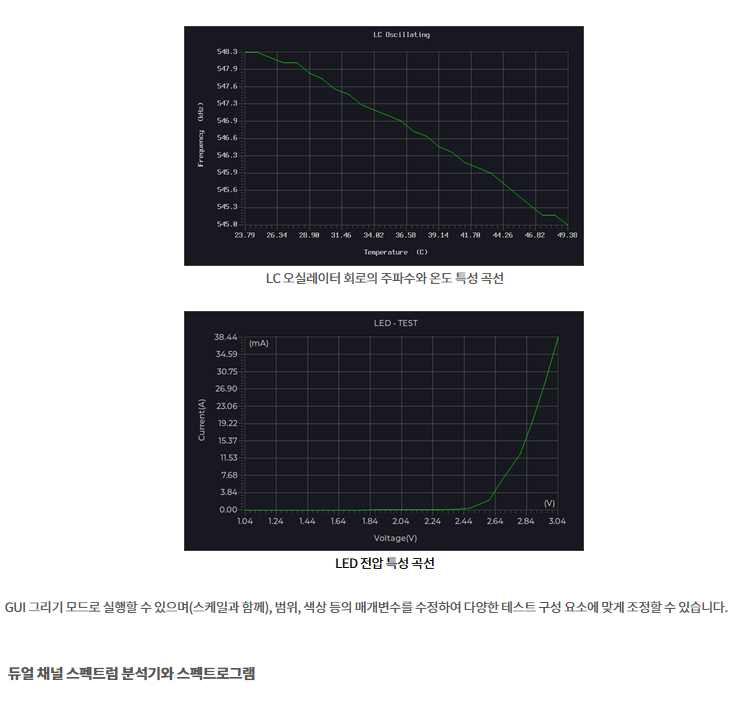

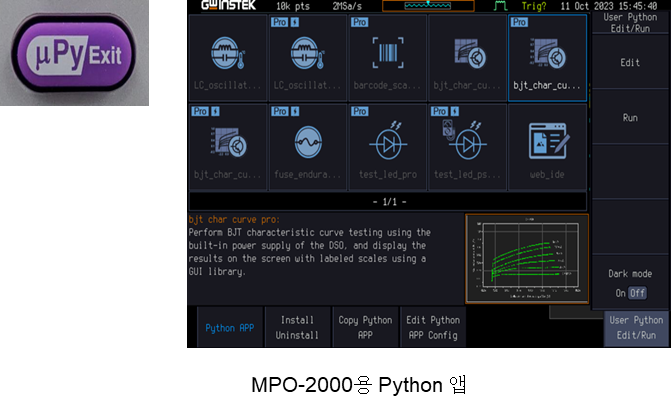

Python Script Execution (μPy)

Maximum number of installable python apps: 100 sets (including the pre-installed Python apps).

Note. There is no restriction on script files (*.py).

APPs installation capacity limit: 20M byte maximum

MQTT Protocol: “Message Queuing Telemetry Transport” is supported which including the “Publish” and “Subscribe” pattern.

-Basic version (MPO-2000B series):

*Supporting 1,000 points waveform data processing.

-Professional version (MPO-2000P series):

*Supporting USB CDC ACM Class,

*USB HID Class,

*Python GUI library,

*100,000 points waveform data processing

Component Tester

Providing I-V characteristic curve (tracer) with readout scale.

Please refer to the application note for the details.

Time clock

Time and Date ,Provide the Date/Time for saved data

Internal flash disk

100M bytes Single-Level Cell flesh memory

Installed APP

Go/NoGo, DVM, DataLog, Digital Filter, Frequency Response Analyzer, Mask, CAN-FD*, USB2.0 (full speed)*, FlexRay*+, S*+, USB-PD*+, Mount Remote Disk, Demo

*: Available for bus decoder function  +: For Professional version (MPO-2000P series)

Note: The S bus decoder is only available on 4 channel models.

Dimensions

384mmX208mmX127.3mm

Weight

3kg
