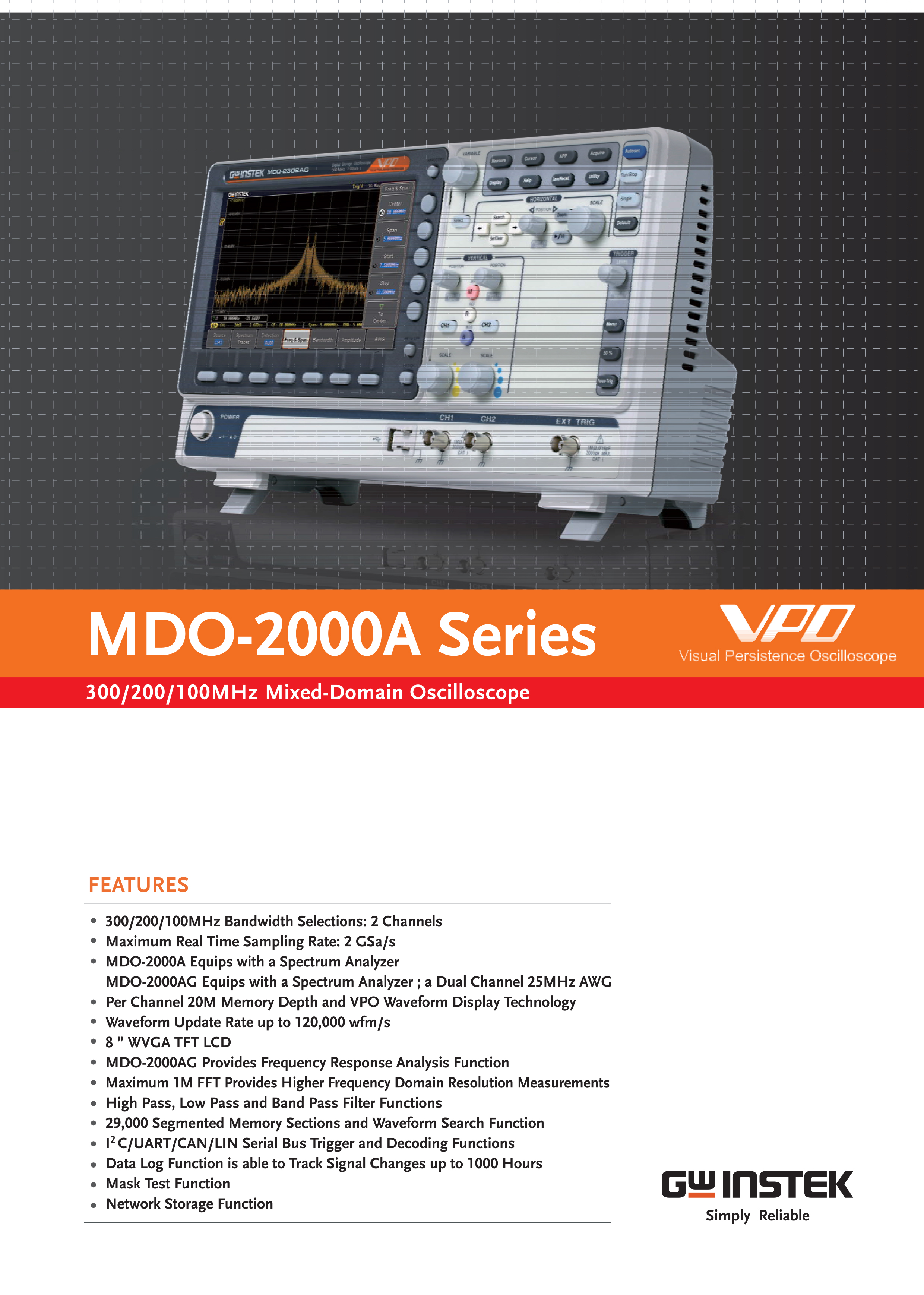

주요 특징

• 300/200/100MHz bandwidth selections ;2 channels

• Real time sample rate is 2GSa/s max.

• Per Channel 20M memory depth and VPO waveform display technology

• Waveform update rate up to 120,000 wfms/s

• 8 “ WVGA TFT LCD display

• Maximum 1M FFT provides higher frequency domain resolution measurements

• High ,low and band pass filter functions

• 29,000 segmented memories and waveform search functions

• I2C/UART/CAN/LIN serial bus trigger and decoding function

• Data log function is able to track signal changes up to 1000 hours

• Network storage function

• Mask test function

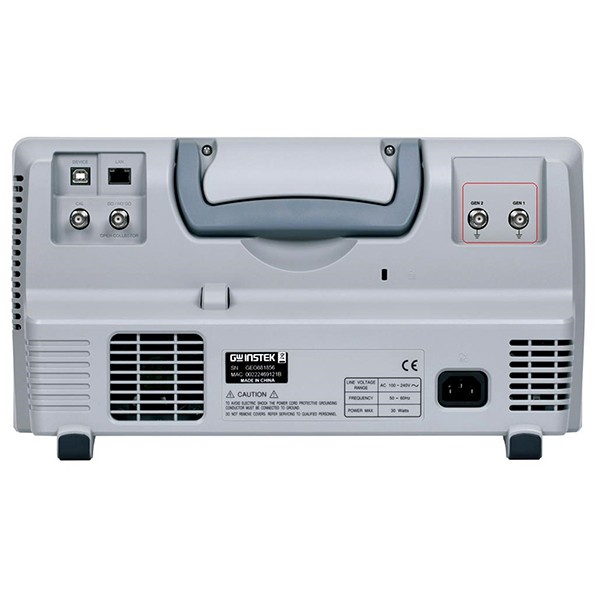

• MDO-2000AG equips with a dual channel 25MHz AWG

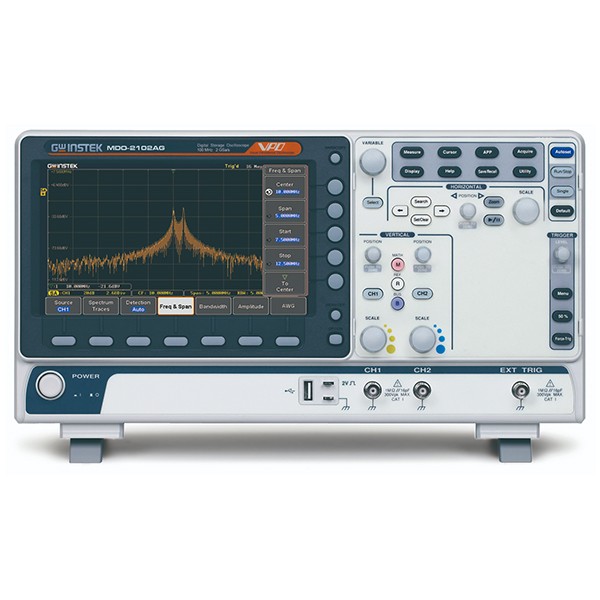

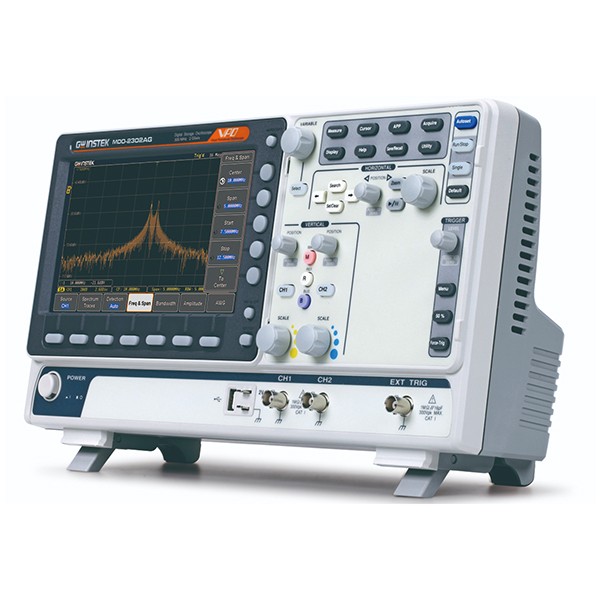

MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.
