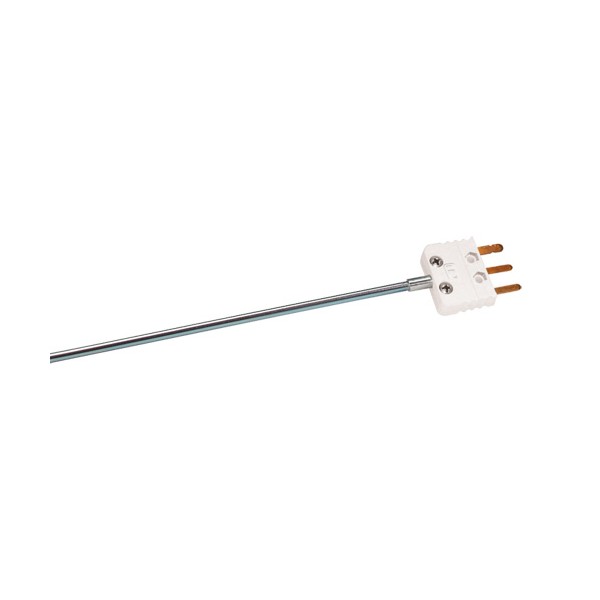

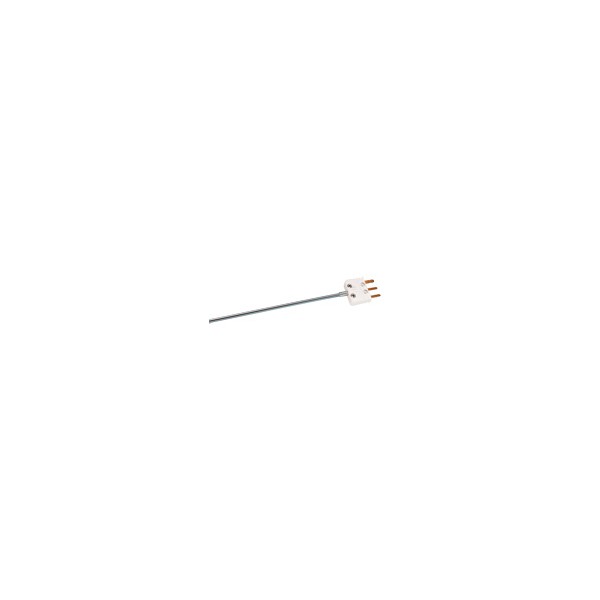

These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 350ºC. They are terminated with a three pin miniature flat pin plug. Ideal where quick disconnection is required near to the sensor. Matching sockets and a range of extension cables and adjustable compression fittings can be found on this website to complement this product.

•3 wire configuration

•Pt100 element meets IEC 60751 Class B : 2008

•Sheath: 316 Stainless Steel 3mm OD

•Variety of lengths available. Length shown does not include the plug or its adaptor

•Operating range: -75ºC to +350ºC

•Terminated in a white 3 pin miniature flat pin plug rated to 135ºC. Matching sockets are available separately
