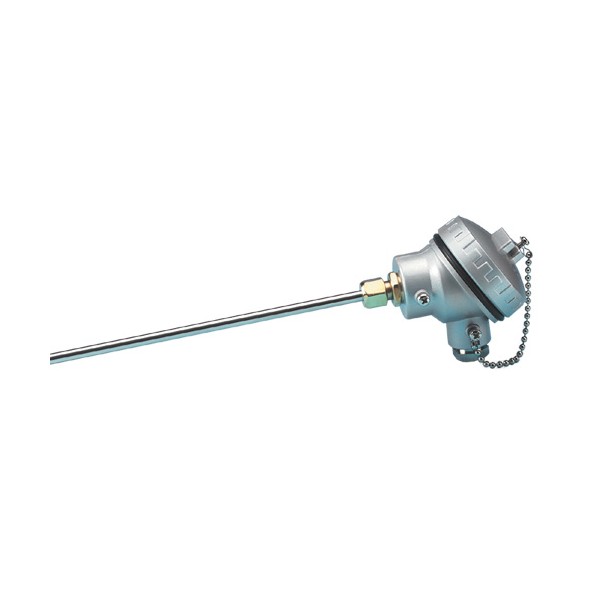

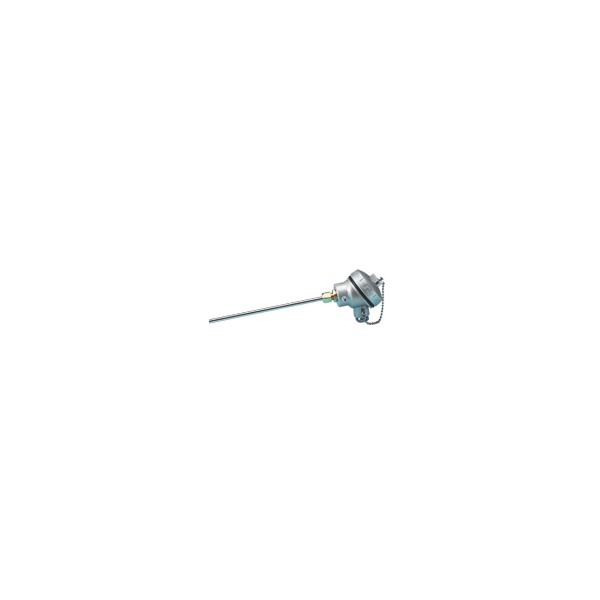

These rigid sensors have a stainless steel welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 350ºC. They are terminated with an IP67 miniature weatherproof head. Ideal where a heavy duty connection needs to made near to the sensor. A range of extension cables and adjustable compression fittings can be found on this website to complement this product.

•3 wire configuration

•Pt100 element meets IEC 60751 Class B : 2008

•Sheath: 316 Stainless Steel 3mm or 6mm OD

•Variety of lengths available. Length shown does not include the head or its gland

•Operating range: -75ºC to +350ºC

•Terminated in an IP67 miniature weatherproof die cast alloy head rated to 135ºC
