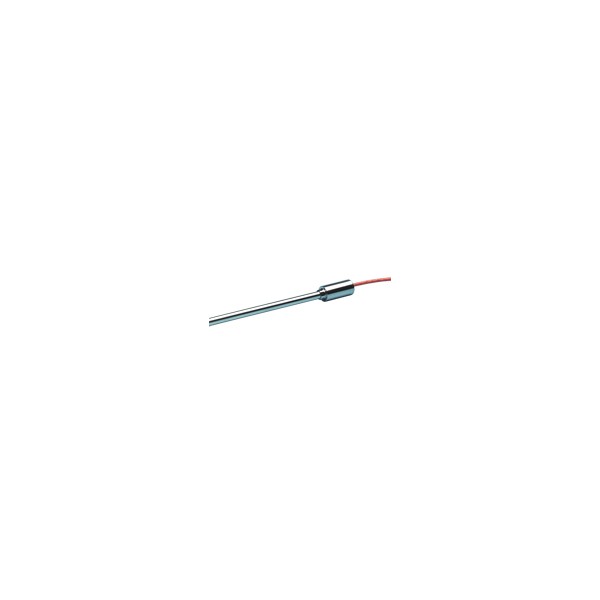

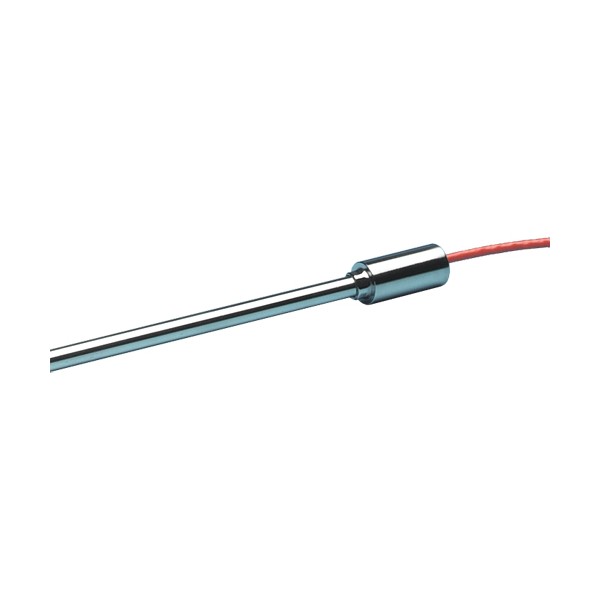

Ideal for either high temperature applications or situations requiring a long probe length, these semi flexible sensors have a stainless steel mineral insulated welded closed end sheath. The Pt100 sensing element is 10mm long and is placed at the tip of the sheath which means that the minimum immersion depth should be at least 50mm. The sensor is rated up to 600ºC at the tip. They are terminated with a pot seal rated to 135ºC which allows the attachment of the 2 metre long PFA extension lead. A range of adjustable compression fittings can be found on this website to complement this product.

•3 wire configuration

•Pt100 element meets IEC 60751 Class B : 2008

•Sheath: 316 Stainless Steel Mineral Insulated 3mm or 6mm OD

•Variety of lengths available. Length shown does not include pot seal or leads

•Operating range: -75ºC to +600ºC at tip

•Terminated in a pot seal 12mm OD x 29mm long rated to 135ºC

•Extension Leads: 2 metres long, 7/0.2mm dia PFA insulated cores with a PFA® oversheath. 3 wire - 2 coloured red and 1 coloured white
