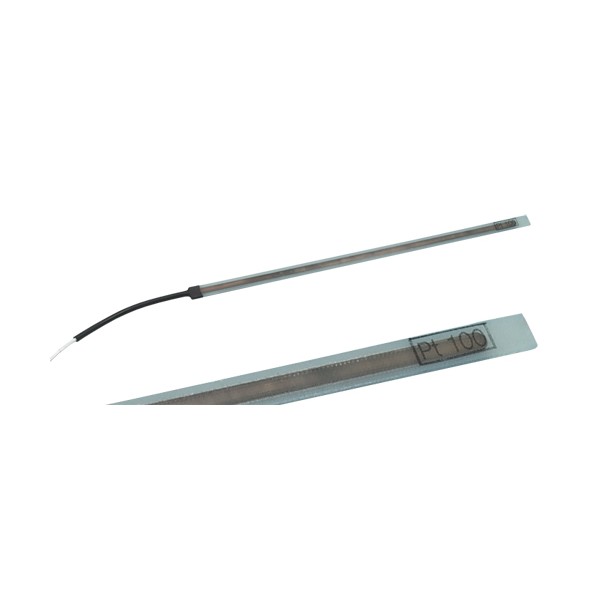

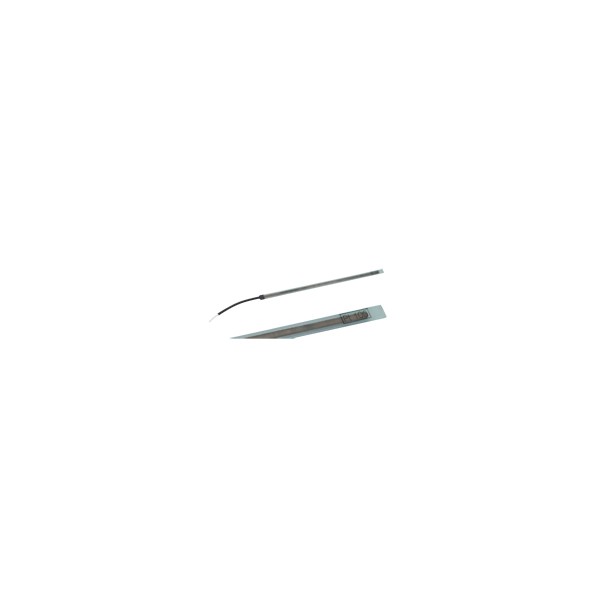

These laminated fibreglass stator slot winding RTD’s fit in slots between stator windings to monitor temperature rise and prevent overheating. The sensing element extends throughout most of the body length which provides an average temperature reading. By making a reading over a larger area, hot spots can be easily detected, which more standard sensors may miss. They can also be used in a number of other applications where an average temperature is required to be measured. We can also make these sensors to suit your particular dimensional requirements.

•4 wire configuration (can be used also as a three wire device)

•Pt100 sensing element meets IEC 60751 Class B : 2008

•Sheath material: Fibreglass

•Sheath dimensions: 300mm long x 10mm wide x 2.5mm thick or 250mm long x 8mm wide x 2.5mm thick

•Operating range: up to 150°C continuous, 185°C short term

•Extension leads: 5 metres of PFA leads. 4 wire - 2 coloured red and 2 coloured white (for use as a 3 wire device, only connect up 2 red and 1 white cores)

•We can make to your requirements (may be subject to minimum quantity)
