General

Product Name: SiteView

Model: SSV-1

System Requirements

Computer:  CPU: 1.0 GH or above
Memory: 256K or above
Port: 1 USB port or 1 COM port
Hard Drive: 1GB or above

Operating System: Windows XP, Vista, 7, 8, 10

Communications:

supported Interface: USB, Serial Port, Ethernet

Baud Rate: Auto-detect baud rate from 2400 to 115200 bps

Logger Interaction:

Status View: View status of the connected logger

Configuration: Configure logger for new recording session

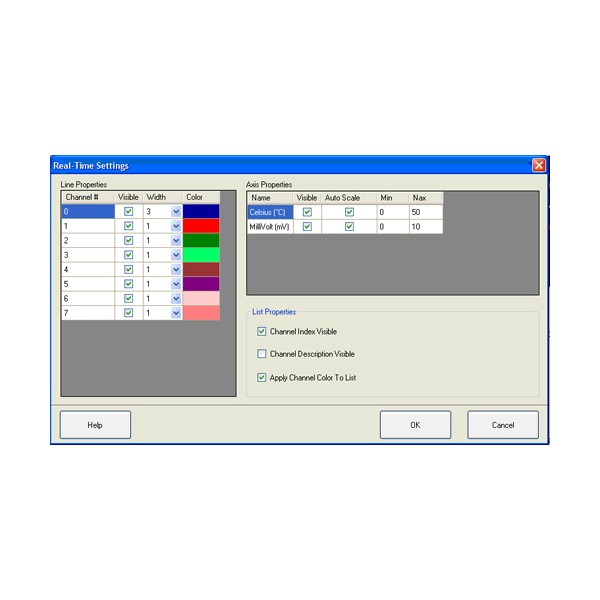

Real-time View: Monitor logger in real-time list view or chart view. Real-time data optionally can be saved to time stampped text files.

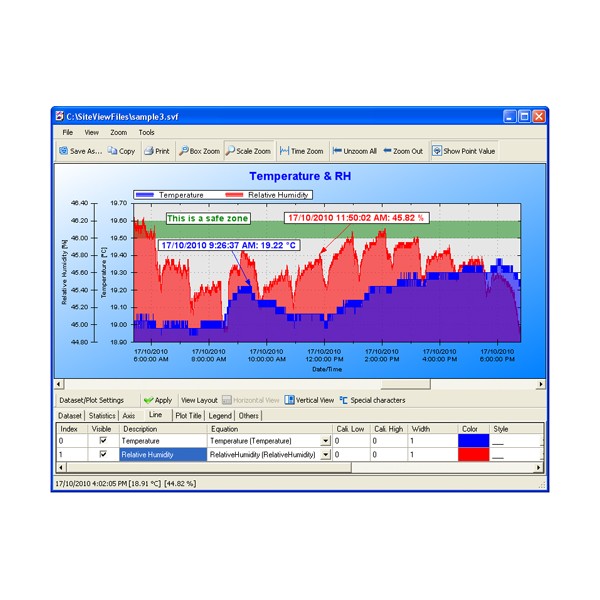

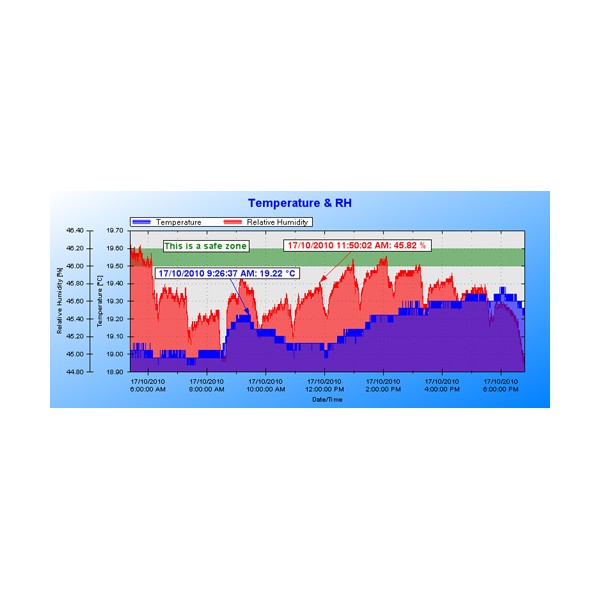

Graphing:

Views: Tabula, graph view, statistics

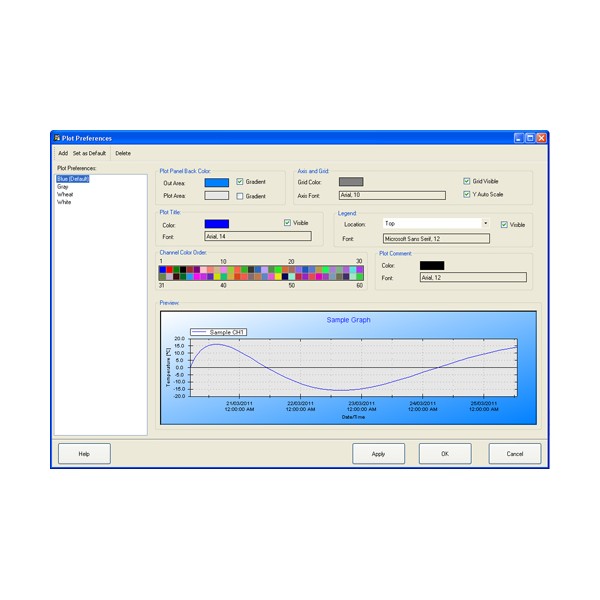

Configuration: Configure axis, lines, view properties

Zoom: Zoom in, zoom out, scale zoom, box zoom, time-span zoom

Label and Annotation: Add, edit, delete graph labels and line annotaitons

Measurement conversion:

Custom Equation: Add, edit, delete custom equation

Custom-Line Equation: Add, eidt, delete custom-line equation

Unit and Subunit: Add, edit, remove unit and subunit

Data Importing/Exporting:

SiteView File: Load single or multiple SiteView files into one viewport
Export graph to images: Emf, PNG, Gif, Jpeg, Tiff, Bmp file format
Export graph to text: csv, txt
Save multiple SiteView files to single SiteView file
Print graph, tabular data, statiscis.

Equations & Units: Import, Export Equation files and Unit files.

Help:

Interactive Help: Related help topic is displayed with hot key (F1) pressing.

Help Files:  Portable Document Format(.PDF)
Microsoft Compiled HTML Help(.CHM)
