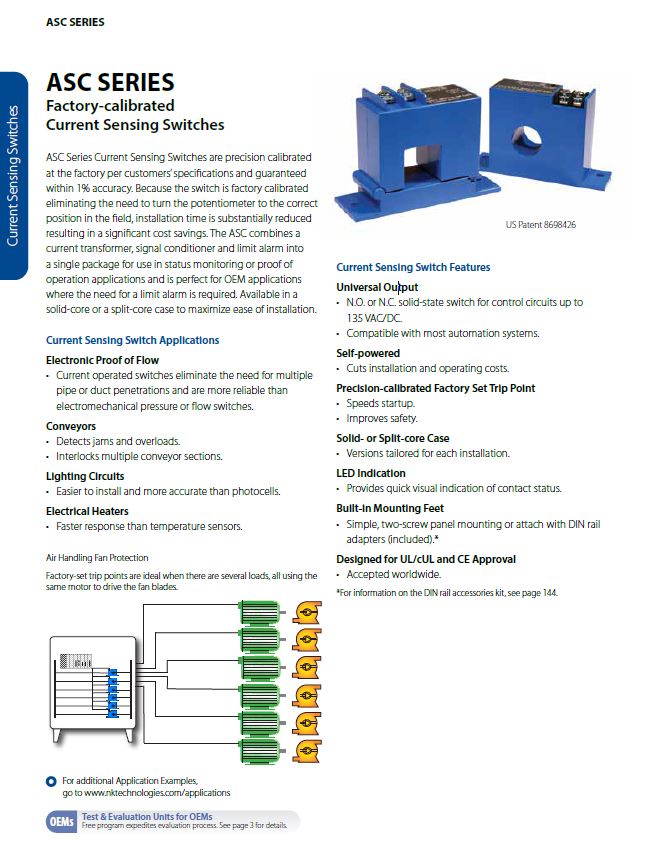

ASC Series Current Operated Switches are precision calibrated at the factory per customers’ specifications and guaranteed within 1% accuracy. Because the switch is factory calibrated eliminating the need to turn the potentiometer to the correct position in the field, installation time is substantially reduced resulting in a significant cost savings. The ASC combines a current transformer, signal conditioner and limit alarm into a single package for use in status monitoring or proof of operation applications and is perfect for OEM applications where the need for a limit alarm is required. Available in a solid-core or a split-core case to maximize ease of installation.

UNIVERSAL OUTPUT

• N.O. or N.C. solid-state switch for control circuits up to 240 VAC/DC
• Compatible with most automation systems

SELF-POWERED

• Reduces installation and operating costs

PRECISION-CALIBRATED FACTORY SET TRIP POINT

• Speeds startup
• Improves safety

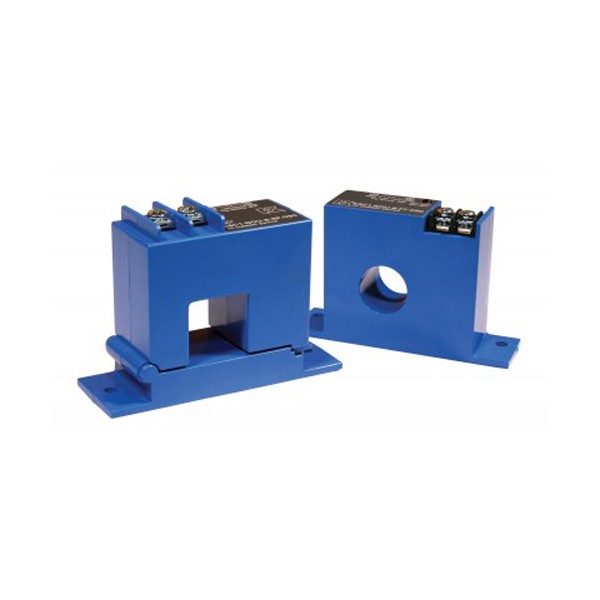

SOLID OR SPLIT-CORE CASE

• Versions tailored for each installation

LED INDICATION

• Provides quick visual indication of contact status

BUILT-IN MOUNTING FEET

• Simple, two-screw panel mount or attach with optional DIN-rail brackets

DESIGNED TO MEET UL, CUL AND CE APPROVAL

• Accepted worldwide
