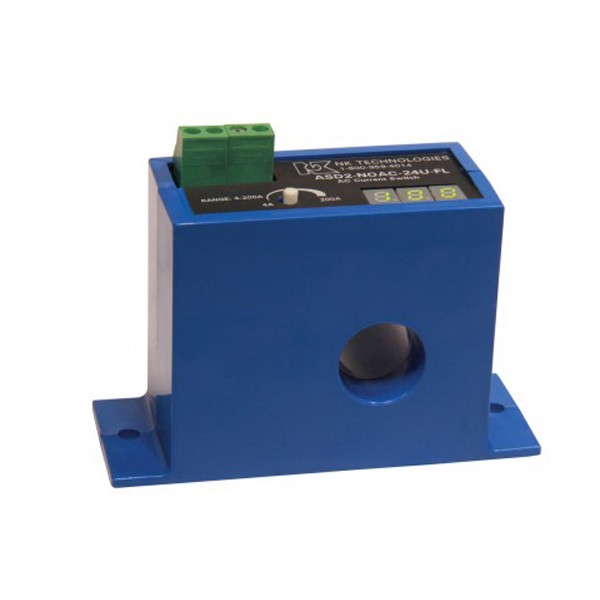

ASD series Current Sensing Switch provides a limit alarm contact with the easiest adjustment method ever designed. The single turn potentiometer, allows the trip point to be set before the sensor is installed, or before the monitored circuit is energized. The LED display provides a quick visual indication of where the contact changes.

SOLID-STATE OUTPUT

• N.O. or N.C. solid-state switch for control circuits up to 240 VAC
• Compatible with most automation systems

EXTERNAL POWERED

• Allows for higher accuracy

EASILY ADJUSTABLE & PRECISE SETPOINT

• Speeds startup
• Improves the safety by allowing the trip point adjustment with no power through the sensing window

LED DISPLAY

• Provides quick visual indication of where the contact changes
• Easiest and most accurate setpoint adjustment available

BUILT-IN MOUNTING FEET

• Simple, two-screw panel mount or attach with optional DIN rail brackets

DESIGNED TO MEET UL, CUL AND CE APPROVAL

• Accepted worldwide
