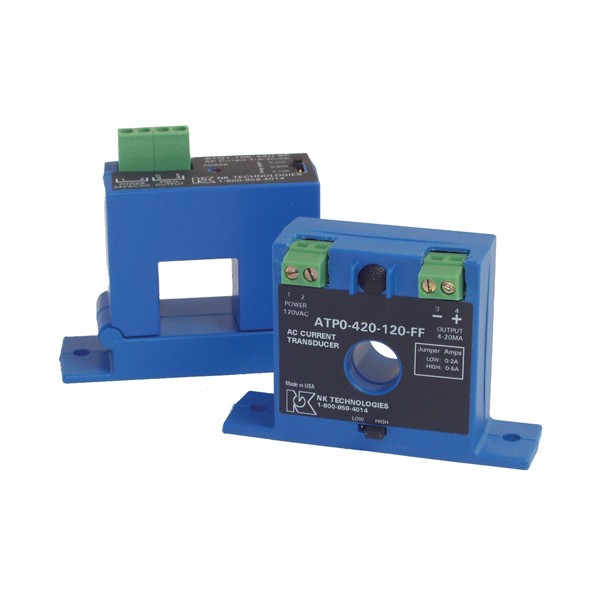

ATP Series AC Current Transducer powered current transducers sense currents from 0–200 A and provide a proportional analog VDC or mA output. Powered by 120 VAC or 24 VAC/ VDC, the ATP Series AC Current Transducer eliminates the need for costly power supplies or voltage rectifiers inside the control panel. Designed for motor control applications with standard sinusoidal waveforms, the ATP AC Current Transducer features user-selectable input ranges, a choice of outputs and split-core or solid-core cases.

FAST, ACCURATE RMS MEASUREMENT

• Unique ‘average responding’ algorithm provides RMS output on pure sine wave and constant speed loads, offering improved accuracy over two-piece solutions

JUMPER-SELECTABLE INPUT RANGES

• Each unit has multiple input range capability and can be used for a variety of applications, reducing the need for separate models

ISOLATION OUTPUT

• Output is magnetically isolated from the input for enhanced safety and elimination of insertion losses
