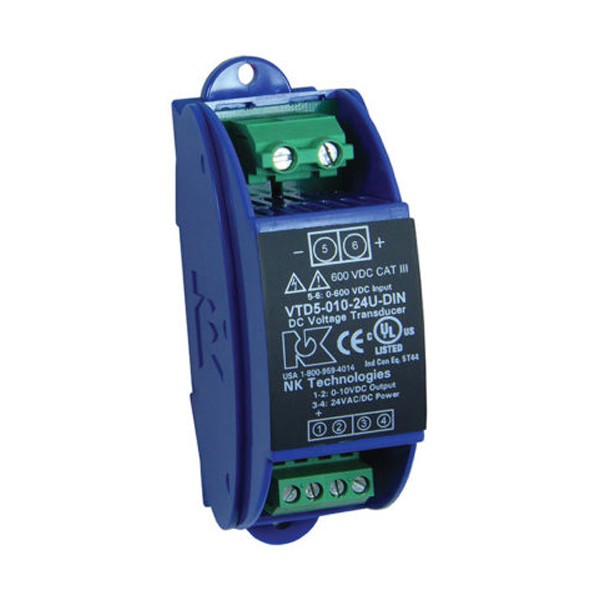

VTD Series Voltage Transducers are high-performance transducers for sensing voltage in DC powered installations. Applicable for use on circuits to 600 VDC, VTD voltage transducers provide a fully isolated 0–5 VDC, 0–10 VDC and 4–20 mA output proportional to rated nominal voltage in DC circuits. Housed in a slim, compact, easy-to-install DIN rail mount case, the VTD Series comes in a variety of nominal voltages.

ACCURATE OUTPUT

• Several ranges available for your application, from 0–15 VDC to 0–600 VDC

STANDARD 4–20 mA SENSOR POWERED OUTPUT

• Industry standard output makes use with existing controllers, data loggers and SCADA equipment easy and reliable

INPUT/OUTPUT ISOLATION

• Input and output circuitry electrically isolated for improved safety of use

COMPACT DIN-RAIL MOUNT CASE

• Space saving 35 mm wide enclosure mounts quickly for an attractive installation
