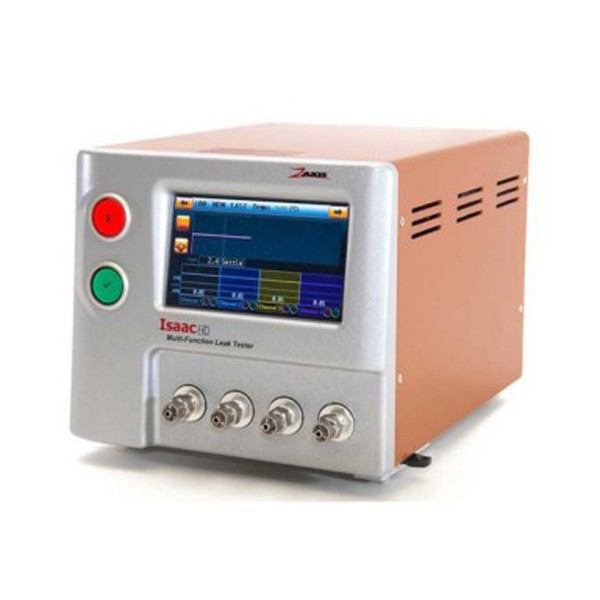

Isaac Specifications

Dimensions:…………….… 6W”x7H” x9D”

Precision…………………….. 0.01%.

Pressure Range…………. 0-15, 0-100 & 0-500 PSIG Positive Pressure. 0-15 PSI Vacuum.

Other ranges available upon request

Media Compatibility….. Clean, dry, non-corrosive gasses compatible with Aluminum and 316 stainless steel.

Power ………………………… 115-230 VAC 50/60 Hz auto sensing, 60 watts

Display …………….……….. 4’’ backlit graphical LCD Touch screen

Engineering Units………. PSI, inches of H2o, kPa, mbar, mmHg, sccm etc

Test types………………….. Standard: Pressure decay, occlusion

Optional: Vacuum Decay, Mass Flow, crack pressure, Burst & more

Stored Programs……….. 100

Interface……………………. RS232, TCP/IP (Ethernet)

Auxiliary Outputs………. 24Vdc PLC interface

Time…………………………… 0.1-999.9 seconds

Resolution………………….. Pressure: .00001 PSI

mass flow: range dependant typically .01 SCCM

Storage………………………. -20 to 70ºC

Test port fitting…………. 1/8 NPT female bulkhead

Controls………………………. Graphical touch screen, 22.5 mm NEMA 13 Lighted pushbuttons and indicators
