FOR MEASURING AMPLIFIERS AND SENSORS. GET CONNECTED.

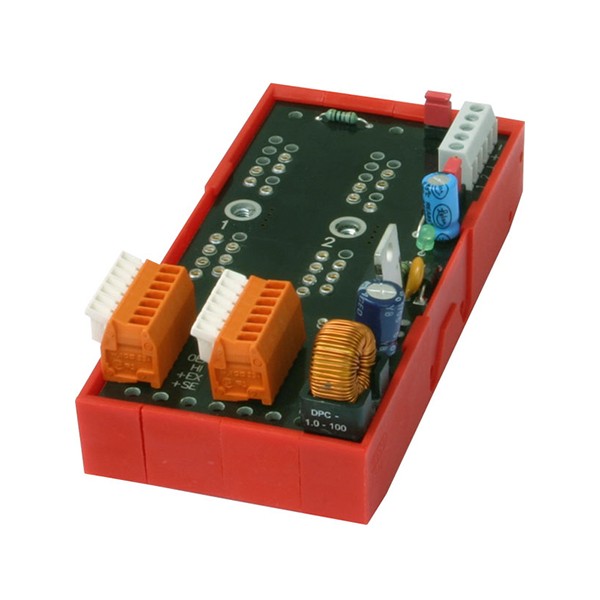

Carrier board in 5B technology: Up to two measuring amplifiers, converters or any other function modules can be plugged into the analog backplane AP2. The variety of available 5B modules provides for the solution of the most specific measuring tasks - individual and simple.

5B TECHNOLOGY. INDUSTRIAL STANDARD.

The pin assignment of the backplane integrated in the AP2 corresponds to the 5B module standard of Analog Devices and Burr Brown. An additional 0EX pin has been introduced for sensors requiring unipolar supply to be suitable for connection.


CLEARLY SAFE.

Most of the 5B modules feature galvanic isolation of the channels from each other and from the data acquisition and control system. This perfectly protects the whole system against high potentials and interferences.


WELL SUPPLIED.

The AP2 is operated with 5V or 9-40V optionally. The supply voltage is connected via screw-clamp terminals.

SIGNAL CONNECTION. CLAMP. READY.

Sensors or other voltage signals can comfortably be connected via 7-pole spring terminal blocks.

CONNECTION TO THE DAQ SYSTEM.

The amplifier outputs are available at a 5-pole screw terminal connector. They are connected to the input lines of a data acquisition system. Combining the AP2 with a measuring card or DAQ system from bmcm makes a powerful measurement system.

DIN RAIL MOUNTING.

The AP2 comes with a DIN rail carrier with bracket to be easily mounted on a standard DIN rail as commonly used in electrical installation.

THE BIG OPTION. YOU HAVE THE CHOICE.

For all needing more channels: The analog backplane is also available as an 8-channel version AP8a
