Altitude: ft metres
 Airspeed: knots, km/hr, mph
 Others: mbar, inHg, inH20 (4°C, 20°C, 60°F), mm Hg, kPa, hPa, psi.
 Airspeed: CAS (calibrated)
 : TAS (true—ability to enter temperature)

 RoC: Rate of Climb
 Rt Ps Rate of Static
 Rt Pt: Rate of Pitot
 Rt Qc Rate of Pt-Ps
 Rt CAS: Rate of calibrated airspeed
 Rt EPR: Rate of engine pressure ratio

 Negligible calibration change with up to 1.25 x FS overload applied.

 Better than 50 ppm per year

 LCD backlit, supertwist/wide angle viewing. 123 mm x 42 mm (4.8 in x  1.6 in) window with 4 lines of 20 characters 8 mm (0.3 in) high.  Optional hand terminal display window 73 mm x 24 mm (2.87 in x  0.95 in)

 Two readings per second display value update.
 Five readings per second interface and control system updates.

 90 to 260 VAC at 47 to 440 Hz, 100 VA normal, 400 VA maximum

 Integral test routines and reporting for both electrical and  pneumatic  systems.

 Parallel printer interface available as standard. IEEE488.2 optional  earlier versions also available

 Calibrated: 5°C to 35°C (41°F to 95°F)
 Operating: -10°C to 50°C (14°F to 122°F)
 Storage: -20°C to 70°C (-4°F to 158°F)

 0 to 90% condensing. “Tropicalised” pcb’s to MIL-T-28800

 MIL-T-28800 Class 2.

 EN50081-1 for EMC emissions
 EN50082-1 for EMC immunity
 EN61010 for electrical and mechanical safety

 13 kg (29 lb) nominal.
 Case dimensions: 485 mm x 270 mm x 305 mm (19 in x 10.5 in x 12  in)

 Front panel mounted fittings with blanking caps
 Static: AN-6 37° flare
 Pitot: AN-4 37° flare

 Fitted with replaceable filters Vacuum (AN6) and pressure (AN4)  supply fittings on rear panel with 2.5 m (8 ft) long mating hoses.

 For normal use, dry air with source pressure at a maximum 25%  above specified pressure range. Compatibility with other dry, non-  corrosive gases can be provided. Please refer to GE.

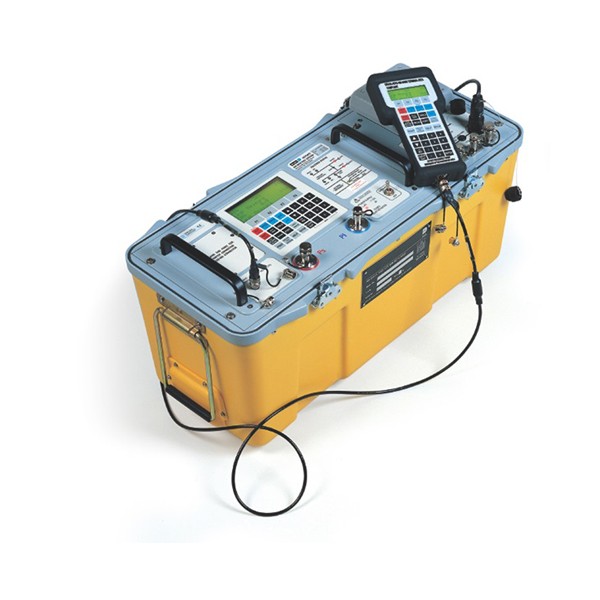

 90 to 260 VAC at 47 to 440 Hz, 500 VA. 28 VDC option available.

 Standard parallel printer connection accessible via front panel  protection cover. IEEE488 optional.

 Weatherproof in operating mode (lid removed).

 35 kg (77 lb)
 762 mm x 320 mm x 480 mm (30 in x 13 in x 19 in) nominal. Wheels  supplied for ease of transport.

 Integral pneumatic supplies (PV 103F). Auxiliary connections for  external supplies to boost or drive other equipment. Supply for  vacuum hold down static adaptors also provided.

 As ADTS 405F with 10 m (33 ft) AC power lead.

 Weatherproof with all doors closed.

 Weight: 250 kg (550 lb)
 Size (h x l x w): 1150 mm x 1350 mm x 700 mm (45 in x 53 in x 27 in)  nominal.

 Maximum safe speed 15 km/h (10 mph). Foam filled wheels 381 mm  (15 in) diameter and a steering wheel 254 mm (10 in) diameter,  nominal.

  A handheld remote control facility for the rack mount ADTS 405  (standard with ADTS 405F/ADTS 405C). Complete with 2 m (6 ft) long  cable.

 Two five-way manifolds for multiple output Ps and Pt ports. Each line  has an individual manual shut-off valve.

 In addition to AC supply, a second power connector enables 28 VDC  input for rack, flightline or cart versions.

 A case to enclose the ADTS 405 482.6 mm (19 in) rack unit for  benchtop use.

 Current ADTS communications protocol.

 Compatible with earlier ADTS units.

 Both (E1) and (E2) provided for user choice.

 Duplicate connections provided at the rear in addition to front panel.

 A software package with serial interface mode adaptor. Permits l  aptop PC based control.

 For altimeters with ICAO reporting encoders. Permits display of the  bit stream and reporting of altitude value.

 Permits the ADTS to monitor data from an aircraft bus, display the 12  pitot static label information and transmit to the aircraft.

 AC power lead—2 m length (6 ft) approximately. Ps, Pt, pressure and  vacuum hoses—2.5 m lengths (8 ft) approximately. Operators manual  and calibration certificate also supplied as standard.

 Instruments manufactured by GE are calibrated against precision  calibration equipment traceable to international standards.
